ABCO 3 Drop Stationary Chiropractic Table ABCO Health Care
ABCO Health Care

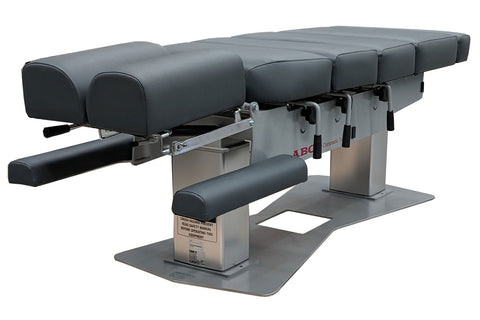

ABCO 3 Drop Stationary Chiropractic Table

$6,930.00

The ABCO Three Drop Elevation Chiropractic Adjusting Table offers versatile height adjustment (50-90cm), supports up to 250kg, and features adjustable body drop pieces. It's designed for comfort and safety, with a 5-year warranty.
Made to order in 2 - 3 days

Our products are made and fulfilled in Australia. If existing stock is available, orders ship in 2 – 3 days.
5 year warranty Australian made 40+ years experience
Upholstery Colour

This product comes standard with a Foot control

$6,930.00
Need a quote?

You can calculate freight and request a formal quote from the cart.
Optional Addons
ABCO Gas Lift Stool ABCO Health Care
ABCO Gas Lift Stool
From $308.00

ABCO gas lift stools, made in Australia, offer comfort and style with softly padded upholstery in various colors. Optional friction wheels add versatility. Easy DIY assembly with flat pack delivery.
Add +
ABCO Chiropractic Wedges ABCO Health Care
ABCO Chiropractic Wedges
$198.00

Experience the ABCO Chiropractic Wedges, designed and made in Australia. With hard foam support, a solid wooden base, and a rubber anti-slip layer, these wedges offer stability and ease of use. Sold in pairs.
Add +
ABCO Pregnancy Wedge ABCO Health Care
ABCO Pregnancy Wedge
From $440.00

Enhance comfort for pregnant patients with our high-density foam wedge. Measuring 550mm x 320mm x 100mm, it features a durable vinyl cover for easy cleaning and long-lasting use. Ideal for extra support.
Add +
$6,930.00
ABCO 3 Drop Stationary Chiropractic Table
$6,930.00

Details

The ABCO Three Drop Elevation Chiropractic Adjusting Table with Drops is a versatile and reliable choice for your practice. Designed and manufactured in Australia, it comes with a 5-year warranty, ensuring long-term peace of mind. With an elevation range of 50-90cm and a weight capacity of up to 250kg, this table offers exceptional flexibility.

You'll appreciate the three crisp, heavy-duty, fully adjustable foot-operated body drop pieces, with an option for hand  cocking at no extra charge. The generous upholstery and extending leg rest add to the comfort and functionality, although there is no option for a cervical drop.

The twin column structure provides a rigid working surface without end-bounce, eliminates lengthwise movement during height adjustment, and enhances safety by reducing the number of potential pinch points. This design also allows for quick and quiet adjustments, improving the overall treatment experience.

For those who prefer a fixed height, a stationary version is also available.

SKU: CIVD.05641.00DDDF.50NP0

Number of Upholstery Sections: 4

Overall Length: 1930mm including leg extension

Upholstery Width: 560mm

Height Adjustment Type: Twin electric column for extra strength and safety with no longitudinal shift as height adjusts

Electric Control: Foot control

Height Adjustment Range: 500 - 900mm

Lifting Capacity: 300kg

Cervical Section Length: 320mm long. Adjusts from +20º to -20º

Lumbar Section Length: 210mm long with drop

Dorsal Section Length: 240mm long with drop

Pelvic Section Length: 240mm with drop + 560mm long. Adjusts to +10°

Leg Extension Length: 100mm long; extends 100mm

Overall Length: 1930mm including leg extension

Overall Width: 560mm

Maximum Upholstery Width: 560mm

Schematic Drawing:

ABCO 3 Drop Stationary Chiropractic Table - Schematic Drawing

Materials: Heavy steel plate and tube

Colour: Light grey

Wheel System: Base plate for maximum stability and ease of cleaning
 

Fabric: Vinyl – Medical grade heavy duty vinyl fabric. Formulated to inhibit hardening and breakdown of the PVC surface due to perspiration and oils. Light fast, fire retardant, sanitised and stain resistant.

Foam: 80mm very high-density foam with 12mm soft foam over

Colours: Wedgewood. Other colours on request

Cervical Section - Gas Strut - ±20°
Leg Extension - Manual - extends 100mm

Electric Control: Foot control

Lifting Function : Twin electric column for extra strength and safety with no longitudinal shift as height adjusts

Lifting Capacity: 300kg

Drop Height: 16mm

Drop Force: 0 - 100% adjustable from either side of table

Drop Mechanism: Linear bearing / ball bearing

Cocking Mechanism: Roller bearing from either side of table. Hand operated

Minimum Upholstery Height: 500mm

Maximum Upholstery Height: 900mm

Supply: 230vAC +/-10%, 50hz max 1.5amp

Operation: 24vDC max 70VA

Medically approved according to EN60601-1/ AS3200

ARTG No: 123573

Shipping Dimensions: 182 x 62 x 65cm / 125kg Shrink-wrapped on a wooden pallet with bubble wrap

Weight: 110kg

Warranty: 5 years, parts only

Where can I buy ABCO Health care products?
   We ship direct to all parts of Australia from our factory in Melbourne.
   Please place your order on-line here.

Can I trial an ABCO Health Care product before purchase?
   We do not offer a trial service.
   However, we are confident in our products and have a generous Returns policy.

Getting Ready for Use
   Your Table will usually be delivered shrink-wrapped on a disposable wooden pallet.
   Unpack your Table after checking for any transit damage.
   Familiarise yourself with your Table by reading the enclosed User Instructions.
   Position your Table where you will be using it and plug the power cable into a standard household 10amp electrical socket.
   Your Table is now ready for use.

Specifications
   ABCO Health Care has a policy of continuous improvement.
   Specifications and Prices are subject to change without notice.

I have a particular requirement that I cannot see on you site
   As the manufacturer we are able to offer a variety of custom options including non-standard lengths and widths for an extra cost.
   Please use our On-line Chat or our Contact Form describing your requirements.

Returns and Claims
   You can return your purchase for refund within 30 days of delivery.
   Any returns only after authorisation by ABCO.
   All returns at your expense with packaging as new and subject to a 15% restocking fee.
