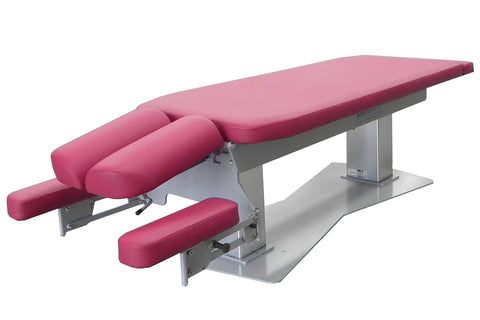

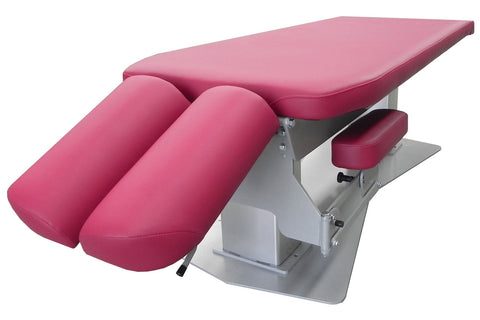

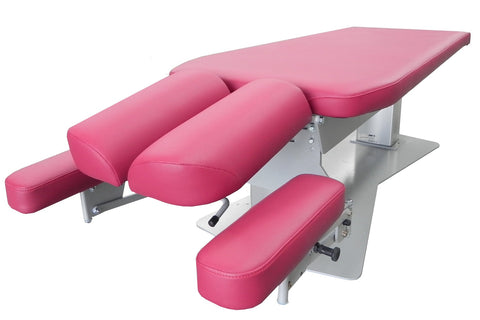

The ABCO Chiro T Chiropractic Table is designed and manufactured in Australia with a 5 year warranty[*]to meet the specific requirements of Chiropractors with a traditional tapered surface.
The twin column structure:
- Provides a much more rigid working surface without 'end-bounce'
- Eliminates lengthwise movement during height adjustment
- Improves the safety of the couch as there are far fewer points where stray fingers or limbs may be caught
- Enhances treatment by moving quickly and quietly as required
The gas-strut powered head section is enhanced with multi-position arm rests combining patient comfort and improved practitioner access
Firm upholstery cushioning with sewn edges is comfortable for patients while providing excellent support for treatment
While the lifting capacity of more than 300kg may rarely be required, the robust structure required to support this capacity ensures a long, trouble-free life
Also available as a Stationary [fixed height] table.
- Standard Specifications
-
Couch DimensionsHead rest340mm long Rolls
ABCO Health Care has a policy of continuous improvement. Specifications and prices are subject to change without notice |
|
Main Section |
1400mm long |
|
Leg extension |
100mm long - Extends 200mm |
|
Overall Length |
1870mm |
|
Width |
600mm |
Upholstery Angle Adjustment |
Head rest |
Gas strut |
Upholstery |
Fabric |
Vinyl – Medical grade heavy duty vinyl fabric. Formulated to inhibit hardening and breakdown of the PVC surface due to perspiration and oils. Light fast, fire retardant, sanitised and stain resistant. |
|
Foam |
38mm Repol high density foam on a strong plywood base covered with 12mm of soft foam for enhanced patient comfort while providing a full working width and extended life. |
|
Colours |
Wedgewood. Other colours on request |
Frame |
Materials |
Heavy steel plate and tube |
|
Colour |
Light Grey |
|
Wheel System |
Base plate standard or optional retractable castors |
Height adjustment |
Range |
450 - 850mm |
|
Lift mechanism |
Twin column for extra strength and safety with no longitudinal shift as height adjusts |
|
Lift operation |
Genuine Linak brand European electric column system. |
|
Control |
Foot control |
Electrical Requirements |
|
Medically approved to AS 3200 / EN60601 - 1 |
|
Supply |
230vAC ±10%, 50hz max 1.5amp |
|
Operation |
24vDC max 70VA |
Lifting Capacity |
|
300+kg |
Weight |
|
80kg |
Shipping Dimensions |
|
197 x 63 x 60cm / 95kg. Shrink-wrapped on a wooden pallet with bubble wrap |
ARTG No |
|
123573 |
Warranty |
|
5 years, parts only |
