ABCO Health Care

ABCO 2 Section Cardiac / Ultrasound / Imaging Couch - 2 Section

$4,752.00

Price Includes GST

The ABCO Cardiac / Ultrasound / Imaging Couch, designed in Australia, supports up to 300kg with easy access features, enhanced safety, and electric adjustments, ensuring durability and convenience in medical settings.
Made to order in 4 - 6 weeks

Our products are made and fulfilled in Australia. If existing stock is available, orders ship in 2 – 3 days.
5 year warranty Australian made 40+ years experience
Choose an Upholstery Colour
Choose an Upholstery Width

This product comes standard with a Foot control

$4,752.00
Need a quote?

You can calculate freight and request a formal quote from the cart.
Optional Addons
TIM TBB2 Battery
TIM TBB2 Battery
$320.00

1.2Ah Lead acid back-up battery. Charges while table is plugged in to power supply Code TBB2-A169-001 on base of battery

Add +
ABCO Towel Roll Holder ABCO Health Care
ABCO Towel Roll Holder
$236.50

Upgrade your space with our Towel Roll Holder, designed for 600mm wide paper towel rolls. Easy to attach and stylish, it fits seamlessly with an overall width of 670mm. Practical and convenient!
Add +
TIM TFS5 Foot Control 2 Function (digital)
TIM TFS5 Foot Control 2 Function (digital)
$354.20

Suitable for tables and chairs with column type lift. Can also be added as an extra foot control for adjustments from both sides of table Code TFS5-A169-002 on base of control

Add +
TIM TH12 Hand Control 2 Function (digital)
TIM TH12 Hand Control 2 Function (digital)
$313.50

Suitable for tables and chairs with column type lift. Can also be added as an extra hand control for adjustments from both sides of table Code TH12-A169-003 on base of control

Add +
Removable Battery Kit
Removable Battery Kit
$686.40

Allows table to be used without power cord. Includes TBB7 Battery and table mount, remote charging cradle and charger.
Add +
View Specification Sheet
$4,752.00
ABCO 2 Section Cardiac / Ultrasound / Imaging Couch - 2 Section
From $4,752.00

Details

The ABCO Cardiac / Ultrasound / Imaging Couch, developed in Australia, is designed to handle patients up to 350kg with a clean, uncluttered structure. It features a cardiac cut-out that drops down for unhindered access to the torso, enhancing patient care. The two-column structure improves safety by reducing the risk of fingers or limbs getting caught. With a minimum height of 52cm, it ensures easy access for frail or disabled patients. The braked castor system allows for easy movement without compromising stability. Additionally, the height, ±15° Trendelenburg, and backrest are all electrically adjustable using a foot control, leaving both hands free for treatment. The robust structure, capable of supporting up to 300kg, ensures a long, trouble-free life, making it a reliable choice for medical settings.

SKU: EH2C.07121.TE000F.005P0

Number of Upholstery Sections: 2

Upholstery Width: 700mm

Height Adjustment Type: Twin electric column for extra strength and safety with no longitudinal shift as height adjusts

Electric Control: Foot control

Height Adjustment Range: 500 - 900mm

Lifting Capacity: 300kg

SKU: EH2C.07121.TE000F.005P0

Dimensions and Adjustment
   Height Adjustment Control - Foot control
   Height Adjustment Lift Operation - Twin electric column for extra strength and safety with no longitudinal shift as height adjusts
   Maximum Lifting Capacity - 300kg Dynamic / 600kg Static
   Height Adjustment Range - 520 - 920mm
   Overall Upholstery Width - 710mm
   Upholstery Adjustment
        Backrest – 680mm long with cardiac cut-out - Electric - -0° / +80°
        Long Section - 1220mm long
        Trendelenburg - ±15°

Frame
   Material - 3 Stage Powdercoated Steel
   Wheel System - 125mm Thermoplastic heavy duty, lockable castors

Upholstery
   Fabric - Medical grade fabric with Ezyclean. Resistant to Isopropyl Alcohol and bleach based cleaners
   Foam - 50mm medium density foam
   Colours - 15 Colours available

Electrical Requirements
   Approvals - Medically approved according to EN60601-1/ AS3200
   Supply - Domestic 10Amp or equivalent

General
   Shipping Dimensions - 197 x 82 x 65cm / 95kg. Shrinkwrapped on a wooden pallet
   Weight - 90kg
   Total Main Body Sections - 1
   ARTG - 123573
   Warranty - 5 years, parts only

ABCO Health Care has a policy of continuous improvement. Specifications are subject to change without notice.

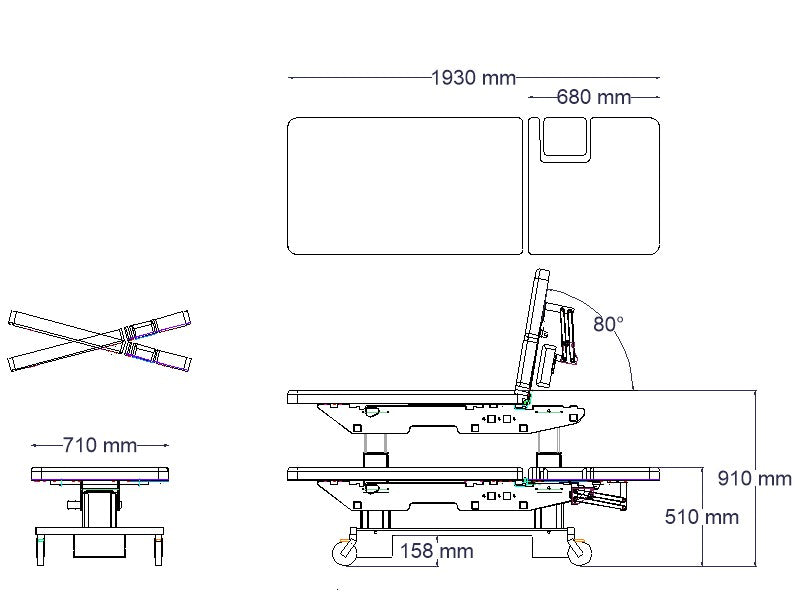

Schematic Drawing:

ABCO 2 Section Cardiac / Ultrasound / Imaging Couch - 2 Section - Schematic Drawing

Where can I buy ABCO Health care products?
   We ship direct to all parts of Australia from our factory in Melbourne.
   Please place your order on-line here.

Can I trial an ABCO Health Care product before purchase?
   We do not offer a trial service.
   However, we are confident in our products and have a generous Returns policy.

Getting Ready for Use
   Your Table will usually be delivered shrink-wrapped on a disposable wooden pallet.
   Unpack your Table after checking for any transit damage.
   Familiarise yourself with your Table by reading the enclosed User Instructions.
   Position your Table where you will be using it and plug the power cable into a standard household 10amp electrical socket.
   Your Table is now ready for use.

Specifications
   ABCO Health Care has a policy of continuous improvement.
   Specifications and Prices are subject to change without notice.

Returns and Claims
   You can return your purchase for refund within 30 days of delivery.
   Any returns only after authorisation by ABCO.
   All returns at your expense with packaging as new and subject to a 15% restocking fee.
