ABCO Cardiac / Ultrasound / Imaging / Vascular Tilt Table

$8,030.00

Discover the ABCO Cardiac / Ultrasound / Imaging / Vascular Tilt Table, designed for versatile medical procedures with adjustable height and tilt, powerful lifting, and customizable options for optimal use.
Made to order in 4 - 6 weeks

Our products are made and fulfilled in Australia. If existing stock is available, orders ship in 2 – 3 days.
5 year warranty Australian made 40+ years experience
Height Range
Tilt Capacity
Upholstery Width

This product comes standard with a Foot control

$8,030.00

You can calculate freight, request a formal quote or place an order from the cart. If there are any options you would like that are not listed, please contact us. As the manufacturer, we are able to do a variety of custom options including non-standard lengths and widths for an extra cost.
View Specification Sheet
$8,030.00
ABCO Cardiac / Ultrasound / Imaging / Vascular Tilt Table
$8,030.00

Details

The ABCO Cardiac / Ultrasound / Imaging / Vascular Tilt Table, designed and manufactured in Australia, is a versatile and reliable piece of equipment. Based on the popular Dual Action Tilt Table available since 1997, this table is perfect for a range of procedures, including Cardiology Tilt Table assessments and Vascular Ultrasound.

Effortlessly adjusting in height from 520 to 770mm and tilting to 80° at any height, it offers great flexibility. The foot plate can be adjusted to ±30° in 5° steps, ensuring comfort and precision. The twin column lift provides powerful lifting without lengthwise movement during height adjustment, enhancing safety by reducing the risk of hand or limb injuries.

With a lifting capacity of 350kg and a tilting capacity of 200kg, this table is built to handle a wide range of patients. Standard features include a single upholstery section, two tilting speeds, patient straps, angle indicators on both sides, and a battery. Additionally, various options such as a backrest or stronger/faster tilt are available to customize the table to your specific needs.

Experience the thoughtful design and flexibility of the ABCO Cardiac / Ultrasound / Imaging / Vascular Tilt Table, tailored to meet the demands of modern medical procedures.

SKU: TD1CW.07031.S0E00H0.005P0

Number of Upholstery Sections: 1

Overall Length: 1950mm

Upholstery Width: 710mm

Height Adjustment Type: Twin electric column for extra strength and safety with no longitudinal shift as height adjusts

Electric Control: Foot control

Height Adjustment Range: 520 - 920mm

Lifting Capacity: 350kg Dynamic / 700kg Static

Overall Length: 1950mm

Overall Width: 710mm

Maximum Upholstery Width: 800mm

Foot Support: Single section plate

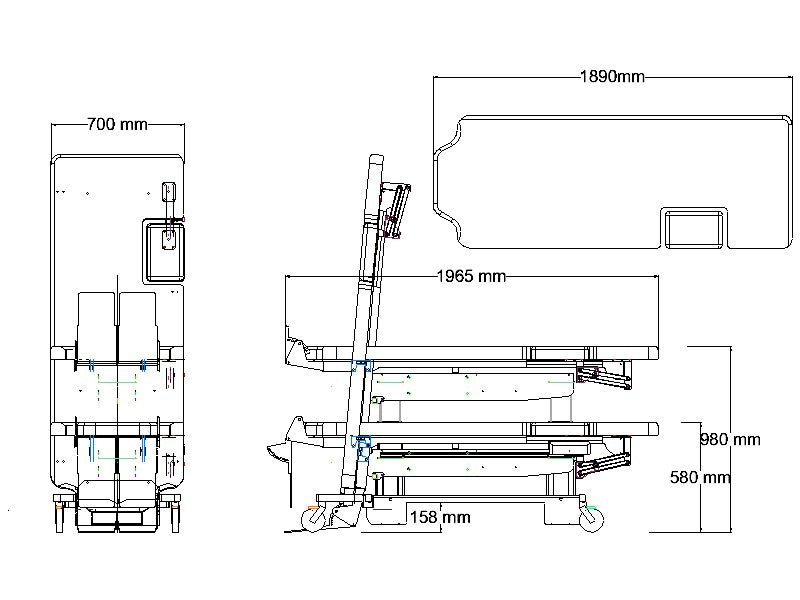

Schematic Drawing:

ABCO Cardiac / Ultrasound / Imaging / Vascular Tilt Table - Schematic Drawing

Materials: Heavy steel plate and tube

Colour: Light Grey

Wheel System: 125mm lockable castors, one with tracking lock for easy movement. 150mm clearance below frame for hoist access.
Upholstery

Fabric: Vinyl – Medical grade heavy duty vinyl fabric. Formulated to inhibit hardening and breakdown of the PVC surface due to perspiration and oils. Light fast, fire retardant, sanitised and stain resistant.

Foam: 38mm high density foam rolled over the edges of the strong plywood base covered with 12mm of soft foam for enhanced comfort while providing a full working width and extended life

Colours: Wedgewood, Other colours on request

Table Tilts -0° / +85°

Electric Control: Foot control

Lifting Function : Twin electric column for extra strength and safety with no longitudinal shift as height adjusts

Lifting Capacity: 350kg Dynamic / 700kg Static

Tilting Function: Twin Electric actuator adjustment 0° / +85°

Tilting Capacity: 200kg

Minimum Upholstery Height: 520mm

Maximum Upholstery Height: 920mm

Supply: 230vAC ±10°, 50hz max 3.0amp

Operation: 24vDC max 70VA Battery back-up

Medically approved to AS 3200 / EN60601 - 1

ARTG No: 123753

Shipping Dimensions: 197 x 82 x 60cm / 95kg. Shrink-wrapped on a wooden pallet.

Weight: 90kg

Warranty: 5 years, parts only
