ABCO 4 Drop Elevation Chiropractic Table ABCO Health Care
ABCO 4 Drop Elevation Chiropractic Table ABCO Health Care
ABCO 4 Drop Elevation Chiropractic Table ABCO Health Care
ABCO Health Care

ABCO 4 Drop Elevation Chiropractic Table

$10,362.00

Price Includes GST

The ABCO Elevation Chiropractic Adjusting Table offers flexibility with a 250kg capacity, quick adjustments, and enhanced safety. Designed in Australia with a 5-year warranty, it's perfect for any practice.
Made to order in 2 - 3 days

Our products are made and fulfilled in Australia. If existing stock is available, orders ship in 2 – 3 days.
5 year warranty Australian made 40+ years experience
Choose an Upholstery Colour
Choose a Cervical Drop Type

This product comes standard with a Foot control

$10,362.00
Need a quote?

You can calculate freight and request a formal quote from the cart.
Optional Addons
ABCO Gas Lift Stool ABCO Health Care
ABCO Gas Lift Stool
From $308.00

ABCO gas lift stools, made in Australia, offer comfort and style with softly padded upholstery in various colors. Optional friction wheels add versatility. Easy DIY assembly with flat pack delivery.
Add +
ABCO Chiropractic Wedges ABCO Health Care
ABCO Chiropractic Wedges
$198.00

Experience the ABCO Chiropractic Wedges, designed and made in Australia. With hard foam support, a solid wooden base, and a rubber anti-slip layer, these wedges offer stability and ease of use. Sold in pairs.
Add +
TIM TFS3 Foot Control 1 Function (digital)
TIM TFS3 Foot Control 1 Function (digital)
$315.70

Suitable for tables and chairs with columns. Can also be added as an extra foot control for adjustments from both sides of table Code TFS3-A169-002 on base of control
Add +
View Specification Sheet
$10,362.00
ABCO 4 Drop Elevation Chiropractic Table
From $10,362.00

Details

The ABCO Elevation Chiropractic Adjusting Table with Drops is a versatile and reliable addition to any chiropractic practice. Designed and manufactured in Australia, it comes with a 5-year warranty. The elevation function can handle up to 250kg, offering great flexibility. Its twin column structure provides a rigid working surface, eliminating 'end-bounce' and lengthwise movement during height adjustment. This design also improves safety by reducing pinch points and allows for quick and quiet adjustments, enhancing treatment efficiency.

You'll appreciate the crisp, heavy-duty, fully adjustable drop pieces, with four drops included and foot press body drop cocking as standard. Hand cocking is available at no extra charge. Additionally, the table includes a pregnancy lift on the pelvic section as standard. For those who prefer, a stationary (fixed height) version is also available. This table is designed to meet the diverse needs of your practice, ensuring both safety and comfort for your patients.

SKU: CIVD.05642.CDFFFF.50NP0

Number of Upholstery Sections: 4

Overall Length: 1930mm including leg extension

Upholstery Width: 560mm

Height Adjustment Type: Twin electric column for extra strength and safety with no longitudinal shift as height adjusts

Electric Control: Foot control

Height Adjustment Range: 500 - 900mm

Lifting Capacity: 300kg

SKU: CIVD.05642.CDFFFF.50NP0

Dimensions and Adjustment
   Height Adjustment Control - Foot control
   Height Adjustment Lift Operation - Twin electric column for extra strength and safety with no longitudinal shift as height adjusts
   Maximum Lifting Capacity - 300kg
   Height Adjustment Range - 500 - 900mm
   Overall Length - 1930mm including leg extension
   Overall Upholstery Width - 560mm
   Upholstery Adjustment
     Cervical Section - 320mm long Rolls with vertical drop - Gas Strut - ±20°
     Lumbar Section - 210mm Long with drop
      Dorsal Section - 240mm long with drop
     Pelvic Section - - - 240mm with drop + 560mm long. 0° / +10°
     Leg Extension - Manual - extends 100mm
   Mechanism - Linear bearing / ball bearing
   Cocking Mechanism - Roller bearing from either side of table. Foot operated
   Drop Force - 0 - 100% adjustable from either side of table
   Drop Height - 16mm

Frame
   Frame Material - Heavy steel plate and tube
   Frame Colour - Light grey
   Wheel System - Base plate for maximum stability and ease of cleaning

Upholstery
   Upholstery Fabric - Leather - New Zealand Pigmented heavy commercial grade cattle hide.
   Upholstery Foam - 80mm very high-density foam with 12mm soft foam over
   Upholstery Colours - Charcoal. Other colours on request

Electrical Requirements
   Electrical Approvals - Medically approved according to EN60601-1/ AS3200
   Electrical Requirements Supply - 230vAC +/-10%, 50hz max 1.5amp
   Electrical Requirements Operation - 24vDC max 70VA

General
   Shipping Dimensions - 182 x 62 x 65cm / 125kg Shrink-wrapped on a wooden pallet with bubble wrap
   Weight - 110kg
   Total Main Body Sections - 4
   ARTG - 123573
   Warranty - 5 years, parts only

ABCO Health Care has a policy of continuous improvement. Specifications are subject to change without notice.

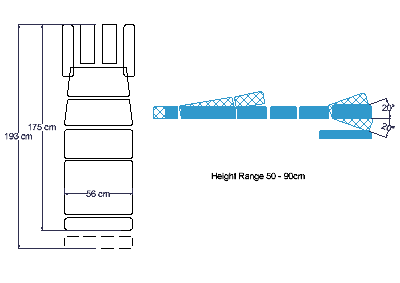

Schematic Drawing:

ABCO 4 Drop Elevation Chiropractic Table - Schematic Drawing

Where can I buy ABCO Health care products?
   We ship direct to all parts of Australia from our factory in Melbourne.
   Please place your order on-line here.

Can I trial an ABCO Health Care product before purchase?
   We do not offer a trial service.
   However, we are confident in our products and have a generous Returns policy.

Getting Ready for Use
   Your Table will usually be delivered shrink-wrapped on a disposable wooden pallet.
   Unpack your Table after checking for any transit damage.
   Familiarise yourself with your Table by reading the enclosed User Instructions.
   Position your Table where you will be using it and plug the power cable into a standard household 10amp electrical socket.
   Your Table is now ready for use.

Specifications
   ABCO Health Care has a policy of continuous improvement.
   Specifications and Prices are subject to change without notice.

I have a particular requirement that I cannot see on you site
   As the manufacturer we are able to offer a variety of custom options including non-standard lengths and widths for an extra cost.
   Please use our On-line Chat or our Contact Form describing your requirements.

Returns and Claims
   You can return your purchase for refund within 30 days of delivery.
   Any returns only after authorisation by ABCO.
   All returns at your expense with packaging as new and subject to a 15% restocking fee.
