ABCO Hylo Chiropractic Table No Drops ABCO Health Care
ABCO Hylo Chiropractic Table No Drops ABCO Health Care
ABCO Health Care

ABCO Hylo Chiropractic Table No Drops

$14,113.00

The ABCO Hylo Chiropractic Adjusting Table offers versatile tilt and height adjustments, customizable presets, and a stable twin column structure. It supports up to 250kg and ensures quick, safe patient positioning.
Made to order in 4 - 6 weeks

Our products are made and fulfilled in Australia. If existing stock is available, orders ship in 2 – 3 days.
5 year warranty Australian made 40+ years experience
Choose an Upholstery Colour

This product comes standard with a Foot control

$14,113.00

You can calculate freight, request a formal quote or place an order from the cart. If there are any options you would like that are not listed, please contact us. As the manufacturer, we are able to do a variety of custom options including non-standard lengths and widths for an extra cost.
Optional Addons
TIM TFS3 Foot Control 1 Function (digital)
TIM TFS3 Foot Control 1 Function (digital)
$315.70

Suitable for tables and chairs with columns. Can also be added as an extra foot control for adjustments from both sides of table Code TFS3-A169-002 on base of control
Add +
ABCO Chiropractic Wedges ABCO Health Care
ABCO Chiropractic Wedges
$198.00

Experience the ABCO Chiropractic Wedges, designed and made in Australia. With hard foam support, a solid wooden base, and a rubber anti-slip layer, these wedges offer stability and ease of use. Sold in pairs.
Add +
ABCO Gas Lift Stool ABCO Health Care
ABCO Gas Lift Stool
From $308.00

ABCO gas lift stools, made in Australia, offer comfort and style with softly padded upholstery in various colors. Optional friction wheels add versatility. Easy DIY assembly with flat pack delivery.
Add +
View Specification Sheet
$14,113.00
ABCO Hylo Chiropractic Table No Drops
$14,113.00

Details

The ABCO Hylo Chiropractic Adjusting Table, designed and manufactured in Australia, comes with a 5-year warranty. This versatile table combines HyLo (tilt) and Elevation (height adjustment) functions, offering flexibility for your practice. With user-customizable presets, you can easily position the table vertically for patient access and horizontally to your preferred working height with a single control button.

The twin column structure provides a stable working surface, eliminates lengthwise movement during height adjustment, and enhances safety by reducing pinch points. It can tilt patients up to 200kg from standing to prone in just 11 seconds and handle more than 250kg for elevation adjustments. The movable foot plate improves access during treatment. Additionally, it's available as a stationary (fixed height) table if needed.

SKU: CIYD.05642.C0000F.50NP0

Number of Upholstery Sections: 4

Overall Length: 1900mm with leg rest extended

Upholstery Width: 600mm

Height Adjustment Type: Twin electric column for extra strength and safety with no longitudinal shift as height adjusts

Electric Control: Foot control

Height Adjustment Range: 450 - 850mm

Lifting Capacity: 250kg

SKU: CIYD.05642.C0000F.50NP0

Dimensions and Adjustment
   Height Adjustment Control - Foot control
   Height Adjustment Lift Operation - Twin electric column for extra strength and safety with no longitudinal shift as height adjusts
   Maximum Lifting Capacity - 250kg
   Table Tilt Function - Tilts to 70° in approx. 15 seconds
   Tilting Capacity - 250kg
   Height Adjustment Range - 450 - 850mm
   Overall Length - 1900mm with leg rest extended
   Overall Upholstery Width - 600mm
   Upholstery Adjustment
     Tilt - Twin Electric - 0° / +70°
     Cervical Section - 340mm long Rolls - Gas Strut - ±20°
     Lumbar Section - 500mm Long
     Pelvic Section - - 620mm long - Gas Strut - 0° / +10°
     Leg Extension - Manual - extends 100mm

Frame
   Frame Material - Heavy steel plate and tube
   Frame Colour - Light Grey
   Wheel System - Base plate for maximum stability and ease of cleaning

Upholstery
   Upholstery Fabric - Leather - New Zealand Pigmented heavy commercial grade cattle hide.
   Upholstery Foam - 80mm very high-density foam with 12mm soft foam over
   Upholstery Colours - Charcoal. Other colours on request

Electrical Requirements
   Electrical Approvals - Medically approved according to EN60601-1/ AS3200
   Electrical Requirements Supply - 100-240vAC 50/60Hz max 4amp
   Electrical Requirements Operation - 24 VDC max 70VA

General
   Shipping Dimensions - 182 x 62 x 65cm / 125kg Shrink-wrapped on a wooden pallet with bubble wrap
   Weight - 110kg
   Total Main Body Sections - 4
   ARTG - 123573
   Warranty - 5 years, parts only

ABCO Health Care has a policy of continuous improvement. Specifications are subject to change without notice.

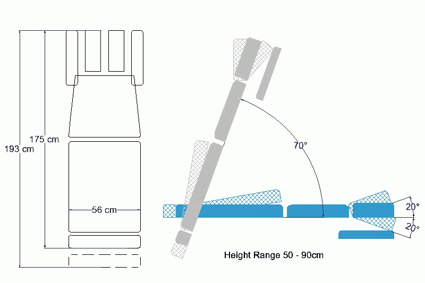

Schematic Drawing:

ABCO Hylo Chiropractic Table No Drops - Schematic Drawing

Where can I buy ABCO Health care products?
   We ship direct to all parts of Australia from our factory in Melbourne.
   Please place your order on-line here.

Can I trial an ABCO Health Care product before purchase?
   We do not offer a trial service.
   However, we are confident in our products and have a generous Returns policy.

Getting Ready for Use
   Your Table will usually be delivered shrink-wrapped on a disposable wooden pallet.
   Unpack your Table after checking for any transit damage.
   Familiarise yourself with your Table by reading the enclosed User Instructions.
   Position your Table where you will be using it and plug the power cable into a standard household 10amp electrical socket.
   Your Table is now ready for use.

Specifications
   ABCO Health Care has a policy of continuous improvement.
   Specifications and Prices are subject to change without notice.

I have a particular requirement that I cannot see on you site
   As the manufacturer we are able to offer a variety of custom options including non-standard lengths and widths for an extra cost.
   Please use our On-line Chat or our Contact Form describing your requirements.

Returns and Claims
   You can return your purchase for refund within 30 days of delivery.
   Any returns only after authorisation by ABCO.
   All returns at your expense with packaging as new and subject to a 15% restocking fee.
