ABCO Health Care

ABCO 4 Drop Hylo Chiropractic Table

$16,357.00

The ABCO Hylo Chiropractic Adjusting Table offers versatile HyLo tilt and elevation functions, customizable presets, and a stable twin column structure. It handles up to 250kg, ensuring efficiency and safety.
Made to order in 2 - 3 days

Our products are made and fulfilled in Australia. If existing stock is available, orders ship in 2 – 3 days.
5 year warranty Australian made 40+ years experience
Upholstery Colour
Height Adjustment
Cervical Drop

This product comes standard with a Foot control

$16,357.00
Need a quote?

You can calculate freight and request a formal quote from the cart.
Optional Addons
ABCO Chiropractic Wedges ABCO Health Care
ABCO Chiropractic Wedges
From $198.00
Add +
ABCO Pregnancy Wedge ABCO Health Care
ABCO Pregnancy Wedge
From $440.00
Add +
View Specification Sheet
$16,357.00
ABCO 4 Drop Hylo Chiropractic Table
From $14,916.00

Details

The ABCO Hylo Chiropractic Adjusting Table with Drops is a versatile and reliable addition to any chiropractic practice. Designed and manufactured in Australia, it comes with a 5-year warranty, ensuring long-term peace of mind. This table combines both HyLo tilt and elevation functions, allowing for easy adjustments to suit your needs. With user-customizable presets, you can effortlessly position the table vertically for patient access and horizontally to your preferred working height with just a single control button.

The twin column structure provides a stable working surface, eliminating lengthwise movement during height adjustments and reducing the risk of stray fingers or limbs getting caught. It also enhances treatment by moving quickly and quietly as needed. Capable of handling patients up to 200kg, the table tilts from standing to prone in just 11 seconds, and the elevation adjustment can support more than 250kg.

You'll appreciate the crisp, heavy-duty, fully adjustable drop pieces, which come with foot press body cocking as standard, with hand cocking available at no extra charge. For those who prefer a fixed height, a stationary version of the table is also available. This table is designed to provide flexibility and efficiency, making it a valuable asset for your practice.

SKU: CIMD.05642.CDFFFF.50NP0

Number of Upholstery Sections: 4

Upholstery Width - Standard: 560mm

Upholstery Width - Maximum: 560mm

Height - Minimum: 500mm

Height Adjustment Range: 600 - 900mm

Height - Maximum: 900mm

Lifting Capacity: 250kg

Standard Overall Length: 1900 mm

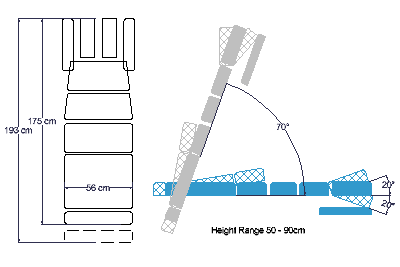

Schematic Drawing:

ABCO 4 Drop Hylo Chiropractic Table - Schematic Drawing

Materials: Heavy steel plate and tube

Colour: Light grey

Wheel System: Base plate for maximum stability and ease of cleaning

Fabric: Leather - New Zealand Pigmented heavy commercial grade cattle hide.

Foam: 80mm very high-density foam with 12mm soft foam over

Cervical Section: 320mm long with drop. Adjusts from 15º to -25º

Dorsal Section: 240mm long with drop

Lumbar Section: 210mm long with drop

Pelvic Section: 240mm with drop + 560mm long. Adjusts to +10°

Leg Extension: 100mm long; extends 100mm

Height Adjustment Lift Operation: Twin electric column for extra strength and safety with no longitudinal shift as height adjusts

Adjustment Control: Foot control

Table Tilt Function: Tilts to 70° in approx. 15 seconds

Drop Height: 16mm

Drop Force: 0 - 100% adjustable from either side of table

Drop Mechanism: Linear bearing / ball bearing

Cocking Mechanism: Roller bearing from either side of table. Foot press operated

Supply: 230 VAC /-10%, 50Hz max 1.5amp.

Operation: 24 VDC max 70VA

Medically approved according to EN60601-1/ AS3200

Table Weight: 110kg

Shipping Dimensions: 182 x 62 x 65cm / 125kg Shrink-wrapped on a wooden pallet with bubble wrap

ARTG No: 123573

Warranty: 5 years, parts only
