ABCO G55 Gynaecology Chair

$7,546.00

Price Includes GST

The ABCO G55 Gynaecology Chair, made in Australia, supports up to 300kg, adjusts height from 500mm to 1050mm, and tilts 20°. It features electric actuators, adjustable foot pads, and converts to an exam couch.
Made to order in 4 - 6 weeks

Our products are made and fulfilled in Australia. If existing stock is available, orders ship in 2 – 3 days.
5 year warranty Australian made 40+ years experience
Choose an Upholstery Colour
Choose an Upholstery Width

This product comes standard with a Foot control

$7,546.00
Need a quote?

You can calculate freight and request a formal quote from the cart.
Optional Addons
ABCO Gynae Leg Rest Assembly ABCO Health Care
ABCO Gynae Leg Rest Assembly
$1,001.00

ABCO Gynae Chairs offer leg supports for superior comfort and flexibility. They rotate 360°, adjust up to 200mm in height, and can be easily removed when not in use.
Add +
ABCO Gas Lift Stool ABCO Health Care
ABCO Gas Lift Stool
From $308.00

ABCO gas lift stools, made in Australia, offer comfort and style with softly padded upholstery in various colors. Optional friction wheels add versatility. Easy DIY assembly with flat pack delivery.
Add +
View Specification Sheet
$7,546.00
ABCO G55 Gynaecology Chair
From $7,546.00

Details

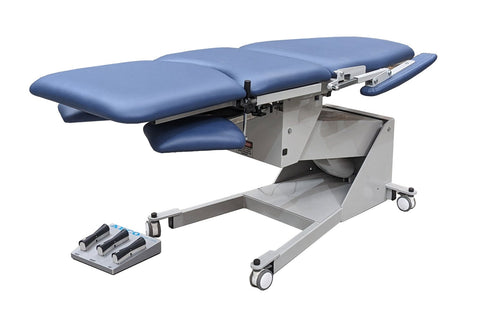

The ABCO G55 Gynaecology Chair is a versatile and robust piece of equipment designed and manufactured in Australia, complete with a 5-year warranty. It caters to larger patients with a lifting capacity of up to 300kg. The fast electric motor allows for quick height adjustments from an easily accessible 500mm up to 1050mm, and the seat tilts to 20°. Electric actuators control both the seat tilt and backrest angle, ensuring ease of use. Fully adjustable foot pads enhance patient comfort, and a stainless-steel tray is conveniently located below the seat. Additionally, the chair can be converted into an examination couch using the included leg extension. This chair is an excellent choice for ensuring patient comfort and ease of use for medical professionals.

SKU: GY50.06021.FEE00F.00310

Number of Upholstery Sections: 3

Overall Length: 1870mm

Upholstery Width: 600mm

Height Adjustment Type: Cantilever single leg long swing arm with electric actuator

Electric Control: Foot control

Height Adjustment Range: 500 - 1050 - 1400mm

Lifting Capacity: 300kg

SKU: GY50.06021.FEE00F.00310

Dimensions and Adjustment
   Height Adjustment Control - Foot control
   Height Adjustment Lift Operation - Cantilever single leg long swing arm with electric actuator
   Maximum Lifting Capacity - 300kg Dynamic / 600kg Static
   Table Tilt Function - Electric actuator
   Tilting Capacity - 300kg
   Height Adjustment Range - 500 - 1050 - 1400mm
   Overall Length - 1870mm
   Overall Upholstery Width - 600mm
   Upholstery Adjustment
        Backrest – 840mm long - Electric - -0° / +80°
        Seat - 480mm long – Electric - - -0° / +30°
        Removable Leg Section – 500mm long

Frame
   Frame Material - Heavy steel plate and tube
   Frame Colour - Light Grey
   Wheel System - 75mm lockable castors.

Upholstery
   Upholstery Fabric - Medical grade heavy duty vinyl fabric. Formulated to inhibit hardening and breakdown of the PVC surface due to perspiration and oils. Light fast, fire retardant, sanitised and stain resistant.
   Upholstery Foam - 38mm high density foam covered by 12mm soft foam rolled over the edges of the strong plywood base providing a full working width and extended life with firm support.
   Upholstery Colours - Wedgewood. Other colours on request

Electrical Requirements
   Electrical Approvals - Medically approved according to EN60601-1/ AS3200
   Electrical Requirements Supply - 230vAC ±10°, 50hz max 1.5amp
   Electrical Requirements Operation - 24vDC max 70VA

General
   Shipping Dimensions - 172 x 82 x 65cm / 110kg.Shrink-wrapped on a wooden pallet with bubble wrap
   Weight - 85kg
   Total Main Body Sections - 3
   ARTG - 123574
   Warranty - 5 years, parts only

ABCO Health Care has a policy of continuous improvement. Specifications are subject to change without notice.

Schematic Drawing:

ABCO G55 Gynaecology Chair - Schematic Drawing
