ABCO Exam G Gynae Couch

$5,126.00

Price Includes GST

The ABCO Health Care Height Adjustable 2-section Exam G couch offers easy access, customizable options, and electric adjustments for height, backrest, and Trendelenburg. Ideal for modern healthcare settings.
Made to order in 4 - 6 weeks

Our products are made and fulfilled in Australia. If existing stock is available, orders ship in 2 – 3 days.
5 year warranty Australian made 40+ years experience
Choose an Upholstery Colour
Choose an Upholstery Width

This product comes standard with a Hand control

$5,126.00
Need a quote?

You can calculate freight and request a formal quote from the cart.
Optional Addons
ABCO Gynae Leg Rest Assembly ABCO Health Care
ABCO Gynae Leg Rest Assembly
$1,001.00

ABCO Gynae Chairs offer leg supports for superior comfort and flexibility. They rotate 360°, adjust up to 200mm in height, and can be easily removed when not in use.
Add +
ABCO Towel Roll Holder ABCO Health Care
ABCO Towel Roll Holder
$236.50

Upgrade your space with our Towel Roll Holder, designed for 600mm wide paper towel rolls. Easy to attach and stylish, it fits seamlessly with an overall width of 670mm. Practical and convenient!
Add +
ABCO Gynae Table Upholstery Insert ABCO Health Care
ABCO Gynae Table Upholstery Insert
$341.00

Enhance your gynaecological examination table with our accessory that fills the perineal cut-out for a neat finish. Easily removable and retrofittable on-site, it's a practical addition for any clinic.
Add +
ABCO Height Adjustable Arm Rests ABCO Health Care
ABCO Height Adjustable Arm Rests
$352.00

Enhance your examination and physiotherapy couches with this versatile accessory. Adjustable height and width, removable arms, and easy on-site retrofitting make it a practical, multi-purpose solution.
Add +
ABCO Gas Lift Stool ABCO Health Care
ABCO Gas Lift Stool
From $308.00

ABCO gas lift stools, made in Australia, offer comfort and style with softly padded upholstery in various colors. Optional friction wheels add versatility. Easy DIY assembly with flat pack delivery.
Add +
View Specification Sheet
$5,126.00
ABCO Exam G Gynae Couch
From $5,126.00

Details

Discover the ABCO Health Care Height Adjustable 2-section Exam G gynaecology couch, designed and manufactured in Australia with a 5-year warranty. This couch offers a low minimum height for easy access by frail or disabled patients, while the high maximum height ensures tall carers can work comfortably.

With a perineal cut-out and adjustable foot pads, patient comfort and clinician access are prioritized. You can also choose from a range of factory-fitted options, including lithotomy knee supports, to customize the couch to your specific needs.

The height, backrest, and ±15° Trendelenburg positions are all electrically adjustable using a hand control, which includes reset buttons for horizontal and negative Trendelenburg positions. Additionally, a double backrest option is available for added versatility.

Experience the convenience and adaptability of the ABCO Health Care Exam G couch, tailored to meet the demands of modern healthcare settings.

SKU: GYE2.07121.TE000H.005P0

Number of Upholstery Sections: 2

Overall Length: 1930mm

Upholstery Width: 710mm

Height Adjustment Type: Twin electric column for extra strength and safety with no longitudinal shift as height adjusts

Electric Control: Hand control

Height Adjustment Range: 520 - 920mm

Lifting Capacity: 300kg

SKU: GYE2.07121.TE000H.005P0

Dimensions and Adjustment
   Height Adjustment Control - Hand control
   Height Adjustment Lift Operation - Twin electric column for extra strength and safety with no longitudinal shift as height adjusts
   Maximum Lifting Capacity - 300kg Dynamic / 600kg Static
   Table Tilt Function - Electric Trendelenburg - - ±15°
   Tilting Capacity - 300kg
   Height Adjustment Range - 520 - 920mm
   Overall Length - 1930mm
   Overall Upholstery Width - 710mm
   Upholstery Adjustment
        Backrest – 680mm long - Electric - -0° / +80°
        Fixed Section - 1220mm long – Electric
        Removable Leg Section – 500mm long
   Foot Support - Adjustable Foot Pads

Frame
   Frame Material - Heavy steel plate and tube
   Frame Colour - Light Grey
   Wheel System - 125mm lockable castors, one with tracking lock for easy movement. 150mm clearance below frame for hoist access.

Upholstery
   Upholstery Fabric - Medical grade heavy duty vinyl fabric. Formulated to inhibit hardening and breakdown of the PVC surface due to perspiration and oils. Light fast, fire retardant, sanitised and stain resistant.
   Upholstery Foam - 38mm high density foam covered by 12mm soft foam rolled over the edges of the strong plywood base providing a full working width and extended life with firm support.
   Upholstery Colours - Wedgewood. Other colours on request

Electrical Requirements
   Electrical Approvals - Medically approved according to EN60601-1/ AS3200
   Electrical Requirements Supply - 230vAC ±10°, 50hz max 1.5amp
   Electrical Requirements Operation - 24vDC max 70VA

General
   Shipping Dimensions - 197 x 74 x 65cm / 90kg. Shrink-wrapped on a wooden pallett
   Weight - 70kg
   Total Main Body Sections - 2
   ARTG - 123573
   Warranty - 5 years, parts only

ABCO Health Care has a policy of continuous improvement. Specifications are subject to change without notice.

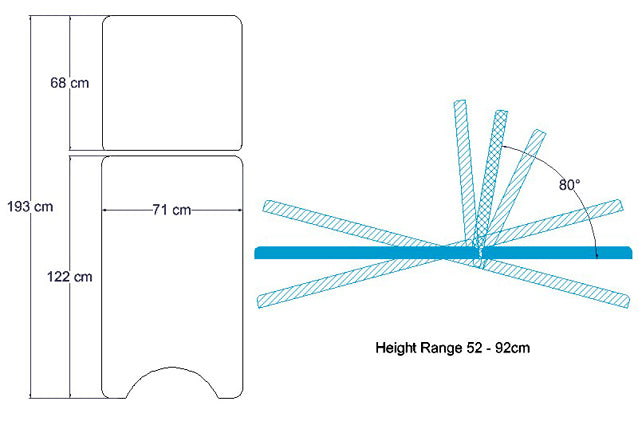

Schematic Drawing:

ABCO Exam G Gynae Couch - Schematic Drawing

Where can I buy ABCO Health care products?
   We ship direct to all parts of Australia from our factory in Melbourne.
   Please place your order on-line here.

Can I trial an ABCO Health Care product before purchase?
   We do not offer a trial service.
   However, we are confident in our products and have a generous Returns policy.

Getting Ready for Use
   Your Table will usually be delivered shrink-wrapped on a disposable wooden pallet.
   Unpack your Table after checking for any transit damage.
   Familiarise yourself with your Table by reading the enclosed User Instructions.
   Position your Table where you will be using it and plug the power cable into a standard household 10amp electrical socket.
   Your Table is now ready for use.

Specifications
   ABCO Health Care has a policy of continuous improvement.
   Specifications and Prices are subject to change without notice.

I have a particular requirement that I cannot see on you site
   As the manufacturer we are able to offer a variety of custom options including non-standard lengths and widths for an extra cost.
   Please use our On-line Chat or our Contact Form describing your requirements.

Returns and Claims
   You can return your purchase for refund within 30 days of delivery.
   Any returns only after authorisation by ABCO.
   All returns at your expense with packaging as new and subject to a 15% restocking fee.
