Details
Discover the quality and convenience of our 100% Australian Made Massage Couch, backed by a 5-year warranty. With electric height adjustment and retractable wheels, it's designed for ease of use and mobility. Measuring 68cm wide and 195cm long, it includes a foot controller for hands-free operation. Choose from blue or grey upholstery. Typically ships within 2-3 business days, but please allow 2-4 weeks for delivery if not in stock.
SKU: MSS10.06831.E0F.00W10
Number of Upholstery Sections: 2
Overall Length: 1880mm
Upholstery Width: 680mm
Height Adjustment Type: Two leg swing arm with electric actuator
Electric Control: Foot control
Height Adjustment Range: 450 - 950mm
Lifting Capacity: 200kg
SKU: MSS10.06831.E0F.00W10
Dimensions and Adjustment
Height Adjustment Control - Foot control
Height Adjustment Lift Operation - Two leg swing arm with electric actuator
Maximum Lifting Capacity - 200kg Dynamic / 400kg Static
Height Adjustment Range - 450 - 950mm
Overall Length - 1880mm
Overall Upholstery Width - 680mm
Upholstery Adjustment
Head rest – 360mm long - Gas Strut - ±20°
Log Section – 1500mm long
Leg Extension - 100mm long - Extends 200mm
Frame
Frame Material - Heavy steel plate and tube
Frame Colour - Light Grey
Wheel System - Single action retractable castors for ease of movement and 'on-the-floor' stability in use. Levelling foot on one corner.
Upholstery
Upholstery Fabric - Medical grade heavy duty vinyl fabric. Formulated to inhibit hardening and breakdown of the PVC surface due to perspiration and oils. Light fast, fire retardant, sanitised and stain resistant.
Upholstery Foam - 50mm premium medium density foam on a strong plywood base covered with 12mm of soft foam for enhanced patient comfort while providing a full working width and extended life.
Upholstery Colours - Wedgewood. Other colours on request
Electrical Requirements
Electrical Approvals - Medically approved to EN60601 - 1 / AS 3200
Electrical Requirements Supply - 100-240vAC 50/60Hz max 4amp
Electrical Requirements Operation - 24vDC
General
Shipping Dimensions - 197 x 74 x 65cm / 80kg Shrink-wrapped on a wooden pallet with bubble wrap
Weight - 65kg
Total Main Body Sections - 2
ARTG - 123753
Warranty - 5 years, parts only
ABCO Health Care has a policy of continuous improvement. Specifications are subject to change without notice.

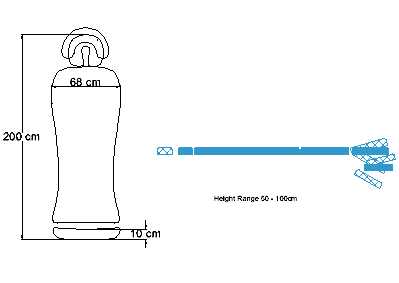

Schematic Drawing:

Where can I buy ABCO Health care products?
We ship direct to all parts of Australia from our factory in Melbourne.
Please place your order on-line here.
Can I trial an ABCO Health Care product before purchase?
We do not offer a trial service.
However, we are confident in our products and have a generous Returns policy.
Getting Ready for Use
Your Table will usually be delivered shrink-wrapped on a disposable wooden pallet.
Unpack your Table after checking for any transit damage.
Familiarise yourself with your Table by reading the enclosed User Instructions.
Position your Table where you will be using it and plug the power cable into a standard household 10amp electrical socket.
Your Table is now ready for use.
Specifications
ABCO Health Care has a policy of continuous improvement.
Specifications and Prices are subject to change without notice.
I have a particular requirement that I cannot see on you site
As the manufacturer we are able to offer a variety of custom options including non-standard lengths and widths for an extra cost.
Please use our On-line Chat or our Contact Form describing your requirements.
Returns and Claims
You can return your purchase for refund within 30 days of delivery.
Any returns only after authorisation by ABCO.
All returns at your expense with packaging as new and subject to a 15% restocking fee.
