ABCO PhysiPod Hybrid
ABCO PhysiPod Hybrid
ABCO Health Care

ABCO PhysiPod Hybrid

$3,586.00

Price Includes GST

The ABCO PhysiPod Hybrid Couch is a versatile, Australian-made treatment couch ideal for podiatry and physiotherapy. It features electric height and seat adjustments, manual leg and back rests, and removable arm rests, backed by a 5-year warranty.
Made to order in 4 - 6 weeks

Our products are made and fulfilled in Australia. If existing stock is available, orders ship in 2 – 3 days.
5 year warranty Australian made 40+ years experience
Choose an Upholstery Colour

This product comes standard with a Foot control

$3,586.00
Need a quote?

You can calculate freight and request a formal quote from the cart.
View Specification Sheet
$3,586.00
ABCO PhysiPod Hybrid
$3,586.00

Details

The ABCO PhysiPod Hybrid Couch is a versatile and robust solution for multi-use rooms. Designed and manufactured in Australia, it comes with a 5-year warranty. This couch is perfect for heavy physio treatments and offers a separate seat tilt, making it highly functional for podiatry and other general treatments.

With electrically adjustable height and seat tilt, controlled by foot or hand, and manually operated leg and back rests, it provides great flexibility. The height-adjustable arm rests can be lowered or removed instantly when not needed. Its minimum entry height of 500mm ensures easy access for all, while the maximum heel height of 1250mm is ideal for standing work.

Overall, the ABCO PhysiPod Hybrid Couch combines functionality and convenience, making it an excellent choice for various treatments.

SKU: PP30.06021.EMEMF.11W10

Number of Upholstery Sections: 3

Overall Length: 1930mm

Upholstery Width: 600mm

Height Adjustment Type: Two leg swing arm with electric actuator

Electric Control: Foot control

Height Adjustment Range: 500 - 1000mm

Lifting Capacity: 200kg Dynamic / 400kg Static

SKU: PP30.06021.EMEMF.11W10

Dimensions and Adjustment
   Height Adjustment Control - Foot control
   Height Adjustment Lift Operation - Two leg swing arm with electric actuator
   Maximum Lifting Capacity - 200kg Dynamic / 400kg Static
   Table Tilt Function - Electric
   Height Adjustment Range - 500 - 1000mm
   Overall Length - 1930mm
   Overall Upholstery Width - 600mm
   Overall Chair Width including removable Arm Rests - 750mm
   Upholstery Adjustment        Seat - 560mm long - Electric - -0° / +15°
       Backrest – 970mm long with Breathe Hole and Plug – Manual - -0° / +80°
       Leg rest – 340mm long with Breathe Hole and Plug – Manual - -80° / +40°

Frame
   Frame Material - Heavy steel plate and tube
   Frame Colour - Light Grey
   Wheel System - Base plate for maximum stability and ease of cleaning

Upholstery
   Upholstery Fabric - Medical grade heavy duty vinyl fabric. Formulated to inhibit hardening and breakdown of the PVC surface due to perspiration and oils. Light fast, fire retardant, sanitised and stain resistant.
   Upholstery Foam - 75mm comfort foam on a strong plywood base providing a full working width and extended life with firm support.
   Upholstery Colours - Wedgewood. Other colours on request

Electrical Requirements
   Electrical Approvals - Medically approved according to EN60601-1/ AS3200
   Electrical Requirements Supply - 230vAC ±10°, 50hz max 3.0amp
   Electrical Requirements Operation - 24vDC max 70VA

General
   Shipping Dimensions - 172 x 64 x 65cm / 90kg. Shrink-wrapped on a wooden pallet with bubble wrap
   Weight - 65kg
   Total Main Body Sections - 3
   ARTG - 123573
   Warranty - 5 years, parts only

ABCO Health Care has a policy of continuous improvement. Specifications are subject to change without notice.

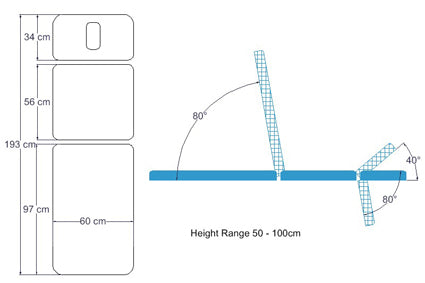

Schematic Drawing:

ABCO PhysiPod Hybrid - Schematic Drawing

Where can I buy ABCO Health care products?
   We ship direct to all parts of Australia from our factory in Melbourne.
   Please place your order on-line here.

Can I trial an ABCO Health Care product before purchase?
   We do not offer a trial service.
   However, we are confident in our products and have a generous Returns policy.

Getting Ready for Use
   Your Table will usually be delivered shrink-wrapped on a disposable wooden pallet.
   Unpack your Table after checking for any transit damage.
   Familiarise yourself with your Table by reading the enclosed User Instructions.
   Position your Table where you will be using it and plug the power cable into a standard household 10amp electrical socket.
   Your Table is now ready for use.

Specifications
   ABCO Health Care has a policy of continuous improvement.
   Specifications and Prices are subject to change without notice.

I have a particular requirement that I cannot see on you site
   As the manufacturer we are able to offer a variety of custom options including non-standard lengths and widths for an extra cost.
   Please use our On-line Chat or our Contact Form describing your requirements.

Returns and Claims
   You can return your purchase for refund within 30 days of delivery.
   Any returns only after authorisation by ABCO.
   All returns at your expense with packaging as new and subject to a 15% restocking fee.
