ABCO Dynamic Sliding Top Tilt Table

$9,320.00

The ABCO Health Care Dynamic Tilt Table enhances patient rehabilitation with adjustable height, progressive weight-bearing exercises, and easy transfers, ensuring safety and comfort for both patients and carers.
Made to order in 4 - 6 weeks

Our products are made and fulfilled in Australia. If existing stock is available, orders ship in 2 – 3 days.
5 year warranty Australian made 40+ years experience
Choose an Upholstery Colour
Choose a Tiliting Capacity
Choose an Upholstery Width

This product comes standard with a Hand control

$9,320.00
Need a quote?

You can calculate freight and request a formal quote from the cart.
ABCO 3 Foot Control ABCO Health Care
ABCO FS3 Foot Control 3 Function
$379.50

Suitable for tables and chairs with 3 function Linak systems. Can also be added as an extra foot control for adjustments from both sides of table Code 10616/3 on base of control.

Add +
ABCO Split Strap Set ABCO Health Care
ABCO Split Strap Set
$630.00

Discover the ideal Tilt Table Strap Set for ABCO Tilt Tables. Made from durable vinyl with velcro adjustments (95-140cm), they allow independent leg strapping. Plus, no Australian GST on Tilt Tables or accessories!
Add +
ABCO Adjustable Work Surface ABCO Health Care
ABCO Adjustable Work Surface
$760.00

Discover the Tray Table for ABCO Tilt Tables (710mm wide). Easily adjustable and installable on-site, it offers convenience without GST. Perfect for enhancing your Tilt Table experience.
Add +
ABCO Torso Wedge ABCO Health Care
ABCO Torso Wedge
$280.00

Enhance patient alignment with ABCO Torso Wedges for Tilt Tables. Adjustable and easy to install on-site, these Lateral Supports are GST-free. Price is per side.
Add +
View Specification Sheet
$9,320.00
ABCO Dynamic Sliding Top Tilt Table
From $9,320.00

Details

The ABCO Health Care Dynamic Tilt Table is a versatile and beneficial piece of equipment designed to enhance patient rehabilitation. With its twin column lift and adjustable height, it offers a powerful lifting function without lengthwise movement, ensuring safety and ease of use. The table is ideal for various therapeutic applications, including spinal cord injury recovery, ICU rehabilitation, and cardiac assessments.

Safety is a priority with features like fewer crush points and easy transfers from wheelchairs or beds. Carers can adjust the working height to their comfort, making it easier to manage patients. The table allows for progressive partial weight-bearing exercises, which can significantly strengthen deconditioned lower extremities and objectively assess physical progress.

Capable of handling patients up to 350kg, the Dynamic Tilt Table is practical for different settings, from rehabilitation centers to bedside use. Its mobility is enhanced by lockable castors, making it easy to move. Standard accessories like patient straps, angle indicators, and a leg support add to its functionality.

Overall, the Dynamic Tilt Table is a valuable tool for improving patient recovery rates while minimizing risks to carers. If you need more details or have specific questions, feel free to ask!

SKU: TY400.07021.CEE00H0.005P1

Number of Upholstery Sections: 4

Overall Length: 1950mm

Upholstery Width: 710mm

Height Adjustment Type: Twin electric column for extra strength and safety with no longitudinal shift as height adjusts

Electric Control: Hand control

Height Adjustment Range: 590 - 990mm [optionally 520 - 770mm]

Lifting Capacity: 350kg Dynamic / 700kg Static

SKU: TY400.07021.CEE00H0.005P1

Dimensions and Adjustment
   Height Adjustment Control - Hand control
   Height Adjustment Lift Operation - Twin electric column for extra strength and safety with no longitudinal shift as height adjusts
   Maximum Lifting Capacity - 350kg Dynamic / 700kg Static
   Table Tilt Function - Twin Electric actuator adjustment 0° / +85°
   Tilting Capacity - 200kg
   Height Adjustment Range - 590 - 990mm
   Overall Length - 1950mm
   Overall Upholstery Width - 710mm
   Upholstery Adjustment
     Table Tilts -0° / +85°
     Backrest -710mm Long – Electric -0° / +85° - Returns to flat when table reaches 30°
     Sliding Seat -510mm Long slides approx. 350mm
     Removable Insert -400mm Long
     Foot section – 230mm Long
    Independently adjustable angle twin foot plates [+30° / -30° in 13 steps];

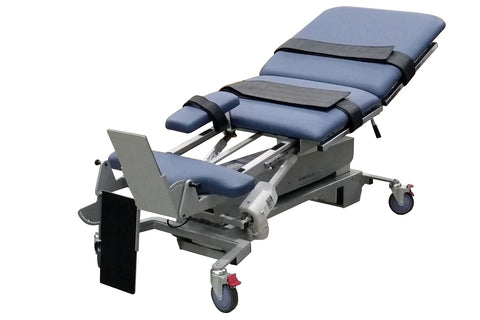

    Single leg support fits to either side – 350mm long x 140mm wide x 125mm high

Frame
   Frame Material - Heavy steel plate and tube
   Frame Colour - Light Grey
   Wheel System - 125mm lockable castors, one with tracking lock for easy movement. 150mm clearance below frame for hoist access.

Upholstery
   Upholstery Fabric - Medical grade heavy duty vinyl fabric. Formulated to inhibit hardening and breakdown of the PVC surface due to perspiration and oils. Light fast, fire retardant, sanitised and stain resistant.
   Upholstery Foam - 38mm high density foam rolled over the edges of the strong plywood base covered with 12mm of soft foam for enhanced comfort while providing a full working width and extended life
   Upholstery Colours - Wedgewood, Other colours on request

Electrical Requirements
   Electrical Approvals - Medically approved according to EN60601-1/ AS3200
   Electrical Requirements Supply - 230vAC ±10°, 50hz max 3.0amp
   Electrical Requirements Operation - 24vDC max 70VA Battery back-up

General
   Shipping Dimensions - 197 x 82 x 65cm / 95kg. Shrinkwrapped on a wooden pallet
   Weight - 90kg
   Total Main Body Sections - 1
   ARTG - 123573
   Warranty - 5 years, parts only

ABCO Health Care has a policy of continuous improvement. Specifications are subject to change without notice.

Schematic Drawing:

ABCO Dynamic Sliding Top Tilt Table - Schematic Drawing

Where can I buy ABCO Health care products?
   We ship direct to all parts of Australia from our factory in Melbourne.
   Please place your order on-line here.

Can I trial an ABCO Health Care product before purchase?
   We do not offer a trial service.
   However, we are confident in our products and have a generous Returns policy.

Getting Ready for Use
   Your Table will usually be delivered shrink-wrapped on a disposable wooden pallet.
   Unpack your Table after checking for any transit damage.
   Familiarise yourself with your Table by reading the enclosed User Instructions.
   Position your Table where you will be using it and plug the power cable into a standard household 10amp electrical socket.
   Your Table is now ready for use.

Specifications
   ABCO Health Care has a policy of continuous improvement.
   Specifications and Prices are subject to change without notice.

I have a particular requirement that I cannot see on you site
   As the manufacturer we are able to offer a variety of custom options including non-standard lengths and widths for an extra cost.
   Please use our On-line Chat or our Contact Form describing your requirements.

Returns and Claims
   You can return your purchase for refund within 30 days of delivery.
   Any returns only after authorisation by ABCO.
   All returns at your expense with packaging as new and subject to a 15% restocking fee.
