ABCO Single Action Tilt Table

$4,330.00

The ABCO Single Action Tilt Table, made in Australia, offers reliable rehabilitation with a 5-year warranty. It features a fixed height, adjustable foot plate, and a 200kg tilting capacity, ensuring safety and versatility.
Made to order in 4 - 6 weeks

Our products are made and fulfilled in Australia. If existing stock is available, orders ship in 2 – 3 days.
5 year warranty Australian made 40+ years experience
Color
Tilt Capacity
Upholstery Width

This product comes standard with a Hand control

$4,330.00
Need a quote?

You can calculate freight and request a formal quote from the cart.
Foot Control ABCO Health Care
Linak Double Foot Control Assembly - Flat Plug
$354.20

Includes Foot switch control box, Left hand and right hand foot pedals. Flat connector Component with cable attached has code: FSE019-00 and / or 10622
Add +
ABCO Split Strap Set ABCO Health Care
ABCO Split Strap Set
$630.00

Discover the ideal Tilt Table Strap Set for ABCO Tilt Tables. Made from durable vinyl with velcro adjustments (95-140cm), they allow independent leg strapping. Plus, no Australian GST on Tilt Tables or accessories!
Add +
ABCO Adjustable Work Surface ABCO Health Care
ABCO Adjustable Work Surface
$760.00

Discover the Tray Table for ABCO Tilt Tables (710mm wide). Easily adjustable and installable on-site, it offers convenience without GST. Perfect for enhancing your Tilt Table experience.
Add +
ABCO Torso Wedge ABCO Health Care
ABCO Torso Wedge
$280.00

Enhance patient alignment with ABCO Torso Wedges for Tilt Tables. Adjustable and easy to install on-site, these Lateral Supports are GST-free. Price is per side.
Add +
View Specification Sheet
$4,330.00
ABCO Single Action Tilt Table
From $4,330.00

Details

The ABCO Single Action Tilt Table is a reliable and versatile option for rehabilitation and medical assessments. Designed and manufactured in Australia, it comes with a 5-year warranty and offers the same functionality as the popular Dual Action Tilt Table, minus the height adjustment. With a fixed height of 570mm, it's ideal for ambulatory patients and features fewer moving parts, reducing the risk of injury.

The table tilts up to 80 degrees, allowing patients to walk on and off safely, and includes an adjustable angle foot plate. It has a standard tilting capacity of 200kg, which can be optionally increased to over 300kg, with full range movement in approximately 11 seconds. The table also comes with three patient straps, tilt angle indicators on both sides, and a battery backup. Plus, there's no Australian GST payable on Tilt Tables.

ABCO Health Care is an NDIS provider, ensuring quality and reliability in their products.

SKU: TS100.07021.00E00H0.005P0-1

Number of Upholstery Sections: 1

Overall Length: 1950mm

Upholstery Width: 710mm

Height Adjustment Type: Fixed height. No Height adjustment.

Electric Control: Hand control

Height Adjustment Range: 570mm fixed height

Lifting Capacity: 350kg Dynamic / 700kg Static

SKU: TS100.07021.00E00H0.005P0-1

Dimensions and Adjustment
   Adjustment Control - Hand control
   Height Adjustment Lift Operation - > - Fixed height. No Height adjustment.
   Maximum Lifting Capacity - 700kg Static
   Table Tilt Function - Twin Electric actuator adjustment 0° / +85°
   Tilting Capacity - 200kg
   Height Adjustment Range - - 570mm fixed height
   Overall Length - 1950mm
   Overall Upholstery Width - 710mm
   Upholstery Adjustment
    Table Tilts -0° / +85°
    Independently adjustable angle twin foot plates [+30° / -30° in 13 steps]

Frame
   Frame Material - Heavy steel plate and tube
   Frame Colour - Light Grey
   Wheel System - 125mm lockable castors, one with tracking lock for easy movement. 150mm clearance below frame for hoist access.

Upholstery
   Upholstery Fabric - Medical grade heavy duty vinyl fabric. Formulated to inhibit hardening and breakdown of the PVC surface due to perspiration and oils. Light fast, fire retardant, sanitised and stain resistant.
   Upholstery Foam - 38mm high density foam rolled over the edges of the strong plywood base covered with 12mm of soft foam for enhanced comfort while providing a full working width and extended life
   Upholstery Colours - Wedgewood, Other colours on request

Electrical Requirements
   Electrical Approvals - Medically approved according to EN60601-1/ AS3200
   Electrical Requirements Supply - 230vAC ±10°, 50hz max 3.0amp
   Electrical Requirements Operation - 24vDC max 70VA Battery back-up

General
   Shipping Dimensions - 197 x 82 x 65cm / 95kg. Shrinkwrapped on a wooden pallet
   Weight - 90kg
   Total Main Body Sections - 1
   ARTG - 123573
   Warranty - 5 years, parts only

ABCO Health Care has a policy of continuous improvement. Specifications are subject to change without notice.

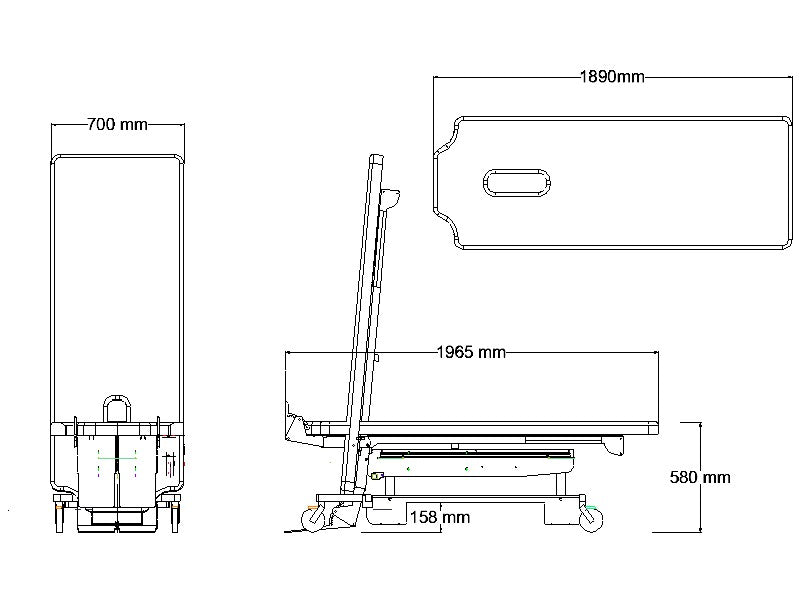

Schematic Drawing:

ABCO Single Action Tilt Table - Schematic Drawing

Where can I buy ABCO Health care products?
   We ship direct to all parts of Australia from our factory in Melbourne.
   Please place your order on-line here.

Can I trial an ABCO Health Care product before purchase?
   We do not offer a trial service.
   However, we are confident in our products and have a generous Returns policy.

Getting Ready for Use
   Your Table will usually be delivered shrink-wrapped on a disposable wooden pallet.
   Unpack your Table after checking for any transit damage.
   Familiarise yourself with your Table by reading the enclosed User Instructions.
   Position your Table where you will be using it and plug the power cable into a standard household 10amp electrical socket.
   Your Table is now ready for use.

Specifications
   ABCO Health Care has a policy of continuous improvement.
   Specifications and Prices are subject to change without notice.

I have a particular requirement that I cannot see on you site
   As the manufacturer we are able to offer a variety of custom options including non-standard lengths and widths for an extra cost.
   Please use our On-line Chat or our Contact Form describing your requirements.

Returns and Claims
   You can return your purchase for refund within 30 days of delivery.
   Any returns only after authorisation by ABCO.
   All returns at your expense with packaging as new and subject to a 15% restocking fee.
