ABCO 2 Section Cardiac / Ultrasound / Imaging Couch - 2 Section ABCO Health Care
ABCO 2 Section Cardiac / Ultrasound / Imaging Couch - 2 Section ABCO Health Care
ABCO 2 Section Cardiac / Ultrasound / Imaging Couch - 2 Section ABCO Health Care
ABCO 2 Section Cardiac / Ultrasound / Imaging Couch - 2 Section ABCO Health Care
ABCO Health Care

ABCO 2 Section Cardiac / Ultrasound / Imaging Couch - 2 Section

$4,752.00

The ABCO Cardiac / Ultrasound / Imaging Couch, designed in Australia, supports up to 350kg with easy access features, enhanced safety, and electric adjustments, ensuring durability and convenience in medical settings.
Made to order in 4 - 6 weeks

Our products are made and fulfilled in Australia. If existing stock is available, orders ship in 2 – 3 days.
5 year warranty Australian made 40+ years experience
Upholstery Colour
Upholstery Width

This product comes standard with a Foot control

$4,752.00
Need a quote?

You can calculate freight and request a formal quote from the cart.
Optional Addons
ABCO Towel Roll Holder ABCO Health Care
ABCO Towel Roll Holder
$236.50

Upgrade your space with our Towel Roll Holder, designed for 600mm wide paper towel rolls. Easy to attach and stylish, it fits seamlessly with an overall width of 670mm. Practical and convenient!
Add +
View Specification Sheet
$4,752.00
ABCO 2 Section Cardiac / Ultrasound / Imaging Couch - 2 Section
From $4,752.00

Details

The ABCO Cardiac / Ultrasound / Imaging Couch, developed in Australia, is designed to handle patients up to 350kg with a clean, uncluttered structure. It features a cardiac cut-out that drops down for unhindered access to the torso, enhancing patient care. The two-column structure improves safety by reducing the risk of fingers or limbs getting caught. With a minimum height of 52cm, it ensures easy access for frail or disabled patients. The braked castor system allows for easy movement without compromising stability. Additionally, the height, ±15° Trendelenburg, and backrest are all electrically adjustable using a foot control, leaving both hands free for treatment. The robust structure, capable of supporting up to 350kg, ensures a long, trouble-free life, making it a reliable choice for medical settings.

SKU: EH2C.07131.TE000F.005P0

Number of Upholstery Sections: 2

Upholstery Width: 700mm

Height Adjustment Type: Twin electric column for extra strength and safety with no longitudinal shift as height adjusts

Electric Control: Foot control

Height Adjustment Range: 500 - 900mm

Lifting Capacity: 300kg

Overall Width: 700mm

Maximum Upholstery Width: 800mm

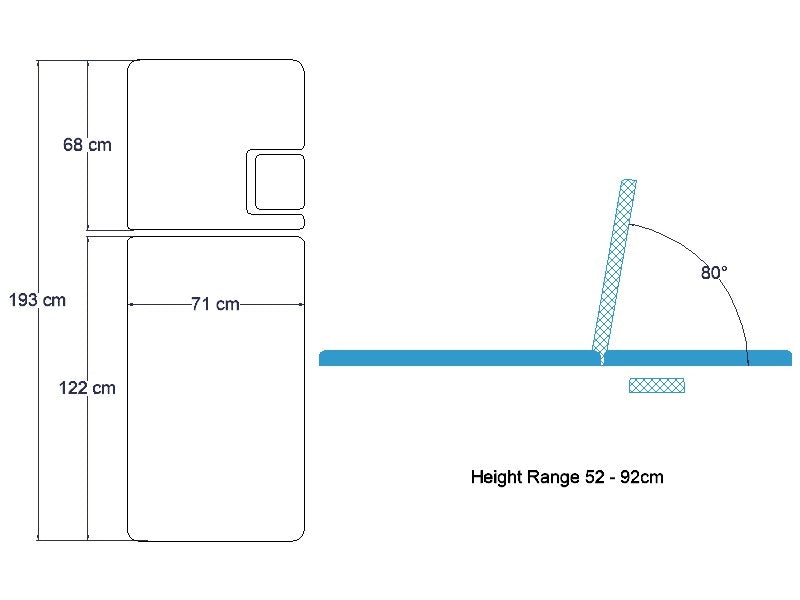

Schematic Drawing:

ABCO 2 Section Cardiac / Ultrasound / Imaging Couch - 2 Section - Schematic Drawing

Materials: Heavy steel plate and tube

Colour: Light grey

Wheel System: 125mm lockable castors, one with tracking lock for easy movement. 150mm clearance below frame for hoist access.

Electric Control: Foot control

Lifting Function : Twin electric column for extra strength and safety with no longitudinal shift as height adjusts

Lifting Capacity: 300kg

Tilting Function: ±15° Trendelenberg

Minimum Upholstery Height: 500mm

Maximum Upholstery Height: 900mm

Supply: 230vAC +/-10%, 50hz max 1.5amp

Operation: 24vDC max 70VA

Medically approved according to EN60601-1/ AS3200

ARTG No: 123753

Shipping Dimensions: 197 x 74 x 65cm / 90kg. Shrink-wrapped on a wooden pallet with bubble wrap

Weight: 80kg

Where can I buy ABCO Health care products?
   We ship direct to all parts of Australia from our factory in Melbourne.
   Please place your order on-line here.

Can I trial an ABCO Health Care product before purchase?
   We do not offer a trial service.
   However, we are confident in our products and have a generous Returns policy.

Getting Ready for Use
   Your Table will usually be delivered shrink-wrapped on a disposable wooden pallet.
   Unpack your Table after checking for any transit damage.
   Familiarise yourself with your Table by reading the enclosed User Instructions.
   Position your Table where you will be using it and plug the power cable into a standard household 10amp electrical socket.
   Your Table is now ready for use.

Specifications
   ABCO Health Care has a policy of continuous improvement.
   Specifications and Prices are subject to change without notice.

Returns and Claims
   You can return your purchase for refund within 30 days of delivery.
   Any returns only after authorisation by ABCO.
   All returns at your expense with packaging as new and subject to a 15% restocking fee.
