Details
The ABCO 2 Section Hospital Exam Couches are a versatile and well-designed solution for medical settings. Manufactured in Australia and backed by a 5-year warranty, these couches meet hospital OHS recommendations. They offer an adjustable height range from 45cm to 95cm, making them accessible for frail or disabled patients and comfortable for tall carers. The ergonomic design features two sections that can be configured from a simple plinth to a chair, making them suitable for multi-disciplinary practices. With braked castors, the couches are easy to move without compromising stability and are compatible with patient hoists. Additionally, a comprehensive range of factory-fitted options allows for customization to meet specific requirements.
SKU: EH20.07121.EE000H.00C10
Number of Upholstery Sections: 2
Standard Overall Length: 1970 mm
Upholstery Width: 710mm
Height Adjustment Type: Two leg swing arm with electric actuator
Adjustment Control:
Height Adjustment Range: 450 - 950mm
Lifting Capacity: 200kg
Overall Length: {"value":1970.0,"unit":"mm"}
Overall Width: 710mm
Backrest Length: 680mm
Fixed Section Length: 1220mm
Maximum Upholstery Width: 800mm

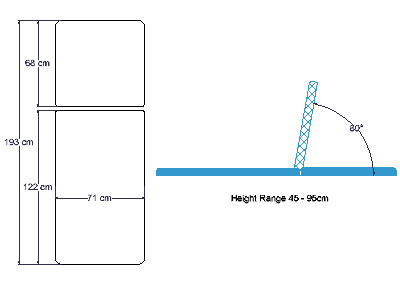

Schematic Drawing:

Materials: Heavy steel plate and tube
Colour: Light Grey
Wheel System: 125mm lockable castors, one with tracking lock for easy movement. 150mm clearance below frame for hoist access.
Fabric: Vinyl – Medical grade heavy duty vinyl fabric. Formulated to inhibit hardening and breakdown of the PVC surface due to perspiration and oils. Light fast, fire retardant, sanitised and stain resistant.
Foam: 38mm high density foam rolled over the edges of the strong plywood base covered with 12mm of soft foam for enhanced comfort while providing a full working width and extended life.
Backrest: 680mm long.
Height Adjustment Lift Operation: Two leg swing arm with electric actuator
Adjustment Control: Hand control
Supply: 230vAC +/-10%, 50hz max 1.5amp
Operation: 24vDC max 70VA
Medically approved according to EN60601-1/ AS3200
Table Weight: 65kg
Shipping Dimensions: 197 x 74 x 65cm / 80kg Shrink-wrapped on a wooden pallet with bubble wrap
ARTG No: 123753
Warranty: 5 years, parts only
Where can I buy ABCO Health care products?
We ship direct to all parts of Australia from our factory in Melbourne.
Please place your order on-line here.
Can I trial an ABCO Health Care product before purchase?
We do not offer a trial service.
However, we are confident in our products and have a generous Returns policy.
Getting Ready for Use
Your Table will usually be delivered shrink-wrapped on a disposable wooden pallet.
Unpack your Table after checking for any transit damage.
Familiarise yourself with your Table by reading the enclosed User Instructions.
Position your Table where you will be using it and plug the power cable into a standard household 10amp electrical socket.
Your Table is now ready for use.
Specifications
ABCO Health Care has a policy of continuous improvement.
Specifications and Prices are subject to change without notice.
I have a particular requirement that I cannot see on you site
As the manufacturer we are able to offer a variety of custom options including non-standard lengths and widths for an extra cost.
Please use our On-line Chat or our Contact Form describing your requirements.
Returns and Claims
You can return your purchase for refund within 30 days of delivery.
Any returns only after authorisation by ABCO.
All returns at your expense with packaging as new and subject to a 15% restocking fee.
