Details
The ABCO Cardiac / Ultrasound / Imaging / Vascular Tilt Table, designed and manufactured in Australia, is a versatile and reliable piece of equipment. Based on the popular Dual Action Tilt Table available since 1997, this table is perfect for a range of procedures, including Cardiology Tilt Table assessments and Vascular Ultrasound.
Effortlessly adjusting in height from 520 to 770mm and tilting to 80° at any height, it offers great flexibility. The foot plate can be adjusted to ±30° in 5° steps, ensuring comfort and precision. The twin column lift provides powerful lifting without lengthwise movement during height adjustment, enhancing safety by reducing the risk of hand or limb injuries.
With a lifting capacity of 350kg and a tilting capacity of 200kg, this table is built to handle a wide range of patients. Standard features include a single upholstery section, two tilting speeds, patient straps, angle indicators on both sides, and a battery. Additionally, various options such as a backrest or stronger/faster tilt are available to customize the table to your specific needs.
Experience the thoughtful design and flexibility of the ABCO Cardiac / Ultrasound / Imaging / Vascular Tilt Table, tailored to meet the demands of modern medical procedures.
SKU: TD1CW.07031.S0E00H0.005P0
Number of Upholstery Sections: 1
Upholstery Width - Standard: 710mm
Upholstery Width - Maximum: 800mm
Height - Minimum: 520mm
Height Adjustment Range: 520 - 920mm
Height - Maximum: 920mm
Lifting Capacity: 350kg Dynamic / 700kg Static
Tilting Capacity: 200kg
Standard Overall Length: 1970 mm

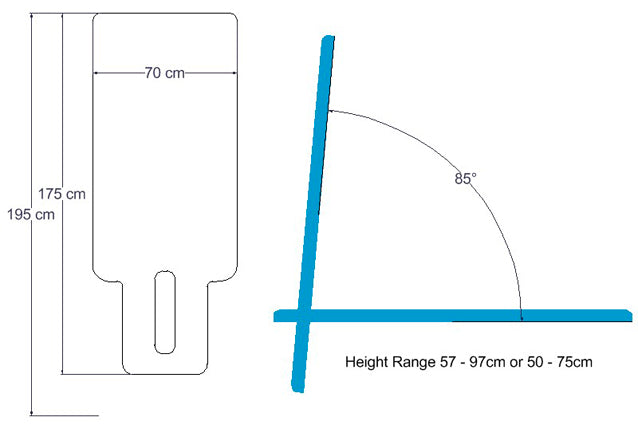

Schematic Drawing:

Materials: Heavy steel plate and tube
Colour: Light Grey
Wheel System: 125mm lockable castors, one with tracking lock for easy movement. 150mm clearance below frame for hoist access.
Foot Support: Single section plate
Fabric: Vinyl – Medical grade heavy duty vinyl fabric. Formulated to inhibit hardening and breakdown of the PVC surface due to perspiration and oils. Light fast, fire retardant, sanitised and stain resistant.
Foam: 38mm high density foam rolled over the edges of the strong plywood base covered with 12mm of soft foam for enhanced comfort while providing a full working width and extended life
Main Section: 1750mm (Twin Electric actuator adjustment 0° / +85°)
Height Adjustment Lift Operation: Twin electric column for extra strength and safety with no longitudinal shift as height adjusts
Adjustment Control: Foot control
Supply: 230vAC ±10°, 50hz max 3.0amp
Operation: 24vDC max 70VA
Medically approved to AS 3200 / EN60601 - 1
Table Weight: 85kg
Shipping Dimensions: 197 x 82 x 60cm / 95kg. Shrink-wrapped on a wooden pallet.
ARTG No: 123753
Warranty: 5 years, parts only
