ABCO Examination Table - Acucare

$3,995.00

Price Includes GST

Advanced Examination Table featuring Tente central locking castors, an electric negative backrest, and one-touch emergency and reset smart positioning.
Made to order in 2 - 3 weeks

Our products are made and fulfilled in Australia. If existing stock is available, orders ship in 2 – 3 days.
5 year warranty Australian made 40+ years experience
Choose an Upholstery Colour
Choose an Upholstery Width

This product comes standard with a Hand control

$3,995.00
Need a quote?

You can calculate freight and request a formal quote from the cart.
Optional Addons
TIM TBB2 Battery
TIM TBB2 Battery
$320.00

1.2Ah Lead acid back-up battery. Charges while table is plugged in to power supply Code TBB2-A169-001 on base of battery

Add +
Removable Battery Kit
Removable Battery Kit
$686.40

Allows table to be used without power cord. Includes TBB7 Battery and table mount, remote charging cradle and charger.
Add +
ABCO Examination Table Upholstered Cot Side ABCO Health Care
ABCO Examination Table Upholstered Cot Side
$374.00

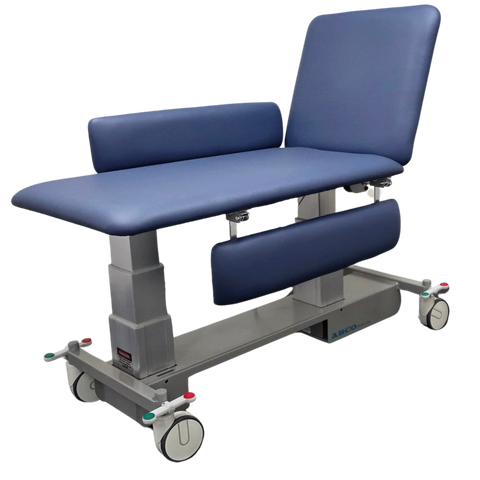

Enhance your ABCO Examination and Neurological Couches with our 950mm x 200mm cot sides. These barriers provide added safety and conveniently store below the upholstery. Sold individually. Order two for both sides.
Add +
View Specification Sheet
$3,995.00
ABCO Examination Table - Acucare
$3,995.00

Details

Optimise your high-pressure workspace with the ABCO Acucare Examination Table, a heavy-duty couch meticulously engineered for acute care, emergency assessment, and demanding clinical environments. Zero-lateral lift mechanics and intelligent controls streamline critical workflows.

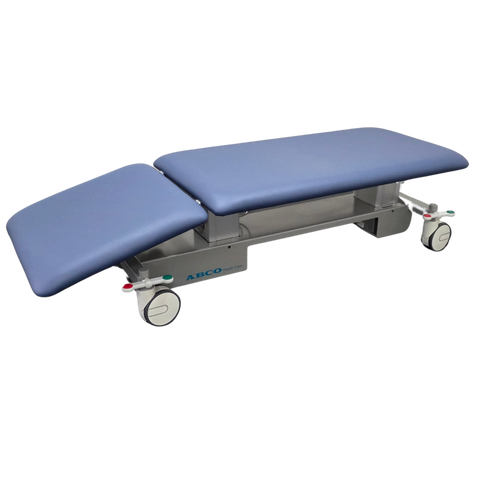

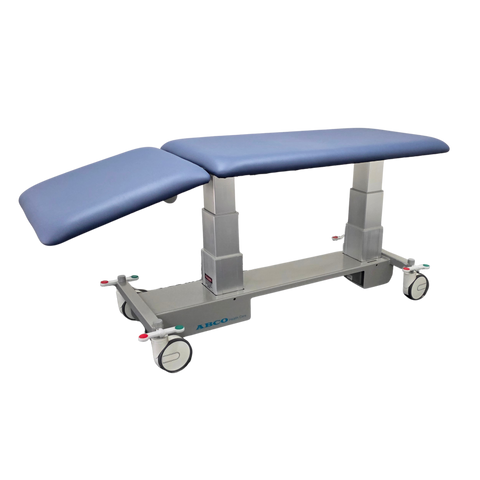

  • Electric Negative Backrest: Effortlessly transitions from flat to a negative incline for specialised examinations and shock management.
  • Tente Central Locking Castors: A single foot pedal instantly locks, unlocks, or steers the entire base.
  • Smart Positions: Hand controller features an Emergency command for rapid therapeutic positioning and a standard Reset button.
  • Vertical Electric Lift (50cm to 90cm): Rises straight up and down to save space in compact consult rooms while reducing mechanical wear.
  • 300kg Lifting Capacity: Confidently accommodates a diverse patient demographic with smooth, dignified height adjustments.
  • Pinch-Free Design: The column-lift mechanism eliminates dangerous scissor-action pinch points, creating a safer clinical environment.
  • Infection Control: Fluid-resistant medical vinyl easily withstands harsh clinical disinfectants.
  • An essential OHS investment, it reduces manual handling risks, keeping focus on patient outcomes.

Ergonomic Controls & Configurations

The ABCO Clinical Examination Couch comes standard with an intuitive hand controller for precise height and backrest adjustments. For hands-free operation during sterile procedures, an optional foot controller is also available.

Why Choose the ABCO Acucare Table?

Engineered for demanding clinical environments and acute care settings, the ABCO Acucare Examination Table represents the ultimate investment in patient security and clinician safety. The inclusion of an advanced Tente central locking castor system provides rock-solid stability at the flick of a single pedal, effectively mitigating workplace OHS hazards during critical patient transfers. Enhanced with pre-programmed emergency and standard reset smart positioning, the Acucare table ensures rapid, precise adjustments when seconds count, allowing your team to focus entirely on superior patient outcomes.

SKU: EX20.07121.CE000H.00CL0P0.26

Number of Upholstery Sections: 2

Overall Length: 2000mm

Upholstery Width: 710mm

Height Adjustment Type: Twin electric column for extra strength and safety with no longitudinal shift as height adjusts

Electric Control: Hand control

Height Adjustment Range: 500-900mm

Lifting Capacity: 300kg/150kg backrest

SKU: EX20.07121.CE000H.00CL0P0.26

Dimensions and Adjustment
   Height Adjustment Control - Hand Control
   Height Adjustment Lift Operation - Twin electric column for extra strength and safety with no longitudinal shift as height adjusts
   Maximum Lifting Capacity - 300kg/150kg back rest
   Height Adjustment Range - 500 - 900mm
   Overall Length - 2000mm
   Overall Upholstery Width - 710mm

Frame
   Material - 3 Stage Powdercoated Steel
   Wheel System - 125mm Tente Central Locking castors

Upholstery
   Fabric - Medical grade fabric with Ezyclean. Resistant to Isopropyl Alcohol and bleach based cleaners
   Foam - 50mm medium density foam
   Colours - 15 Colours available

Electrical Requirements
   Approvals - Medically approved according to EN60601-1/ AS3200
   Supply - Domestic 10Amp or equivalent

General
   Shipping Dimensions - 202 x 72 x 65mm / 90kg Shrink-wrapped on a wooden pallet with bubble wrap
   Weight - 80kg
   Total Main Body Sections - 2
   ARTG - 123573
   Warranty - 5 years, parts only

ABCO Health Care has a policy of continuous improvement. Specifications are subject to change without notice.

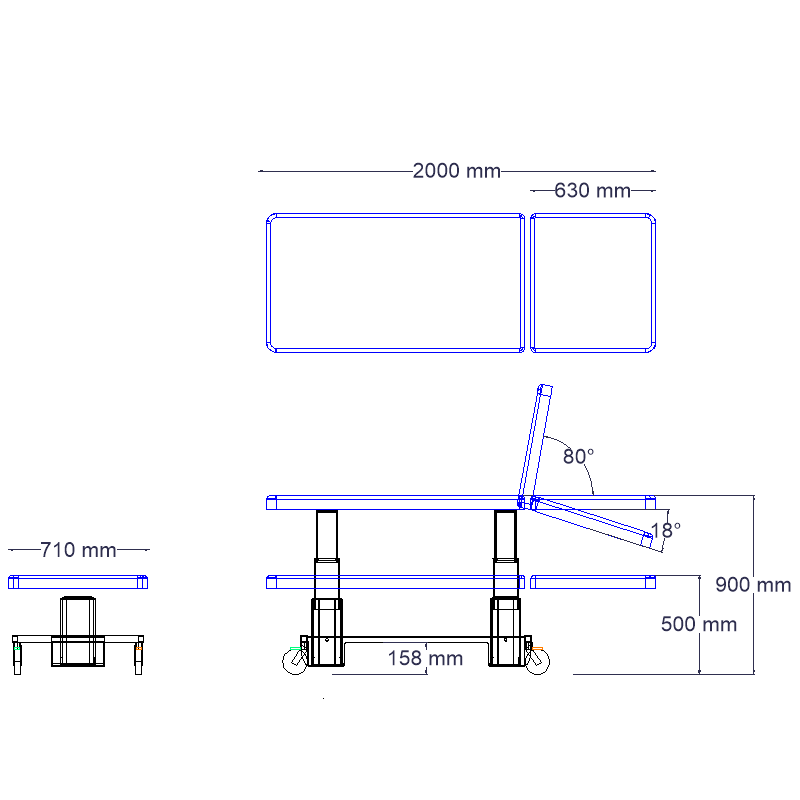

Schematic Drawing:

ABCO Examination Table - Acucare - Schematic Drawing

Where can I buy ABCO Health care products?
   We ship direct to all parts of Australia from our factory in Melbourne.
   Please place your order on-line here.

Can I trial an ABCO Health Care product before purchase?
   We do not offer a trial service.
   However, we are confident in our products and have a generous Returns policy.

Getting Ready for Use
   Your Table will usually be delivered shrink-wrapped on a disposable wooden pallet.
   Unpack your Table after checking for any transit damage.
   Familiarise yourself with your Table by reading the enclosed User Instructions.
   Position your Table where you will be using it and plug the power cable into a standard household 10amp electrical socket.
   Your Table is now ready for use.

Specifications
   ABCO Health Care has a policy of continuous improvement.
   Specifications and Prices are subject to change without notice.

Returns and Claims
   You can return your purchase for refund within 30 days of delivery.
   Any returns only after authorisation by ABCO.
   All returns at your expense with packaging as new and subject to a 15% restocking fee.
