ABCO Examination Table - Clinical

$2,995.00

Price Includes GST

Optimised for general practice, consulting suites, and outpatient environments where reliable, daily patient care is the priority.
Made to order in 2 - 3 weeks

Our products are made and fulfilled in Australia. If existing stock is available, orders ship in 2 – 3 days.
5 year warranty Australian made 40+ years experience
Choose an Upholstery Colour
Choose an Upholstery Width

This product comes standard with a Hand control

$2,995.00
Need a quote?

You can calculate freight and request a formal quote from the cart.
Optional Addons
TIM TBB2 Battery
TIM TBB2 Battery
$320.00

1.2Ah Lead acid back-up battery. Charges while table is plugged in to power supply Code TBB2-A169-001 on base of battery

Add +
Removable Battery Kit
Removable Battery Kit
$686.40

Allows table to be used without power cord. Includes TBB7 Battery and table mount, remote charging cradle and charger.
Add +
ABCO Examination Table Upholstered Cot Side ABCO Health Care
ABCO Examination Table Upholstered Cot Side
$374.00

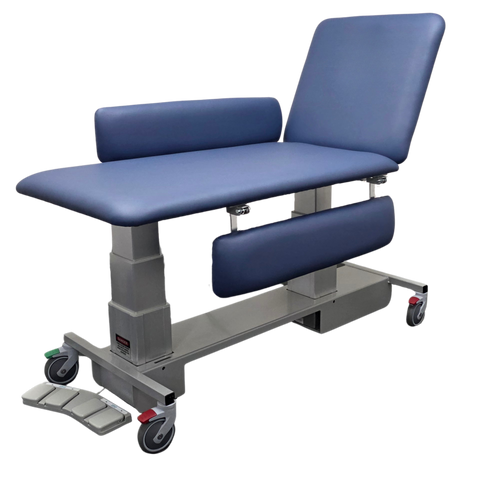

Enhance your ABCO Examination and Neurological Couches with our 950mm x 200mm cot sides. These barriers provide added safety and conveniently store below the upholstery. Sold individually. Order two for both sides.
Add +
View Specification Sheet
$2,995.00
ABCO Examination Table - Clinical
$2,995.00

Details

Optimise your clinical workspace with the ABCO Clinical Examination Table, a heavy-duty, highly adjustable medical couch engineered for general practice, specialist consulting suites, and outpatient environments. Designed for reliable, high-frequency patient care, this premium medical table combines true vertical electric lift columns with advanced safety features to streamline your daily practice workflows.

  • True Vertical Electric Lift (50cm to 90cm): Driven by premium electric lift columns, the table rises straight up and down without horizontal shifting. This space-saving design is perfect for compact consult rooms, significantly reduces mechanical wear and tear, and minimizes maintenance costs.

  • Heavy-Duty 300kg Lifting Capacity: Confidently accommodate a diverse patient demographic. The powerful electric motor ensures smooth, dignified height adjustments even under maximum load.

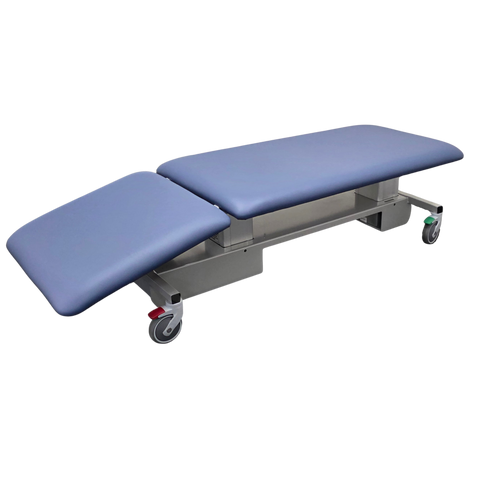

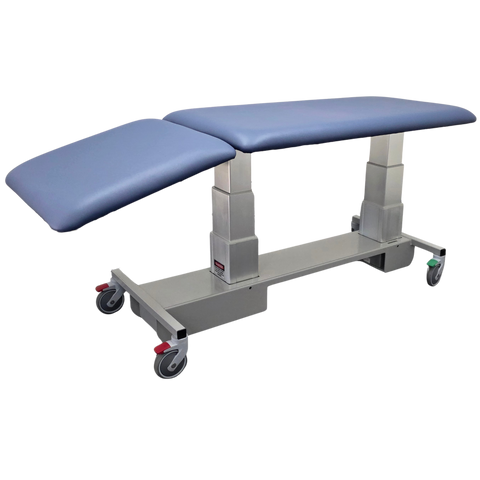

  • Negative Backrest with Electric Adjustment: Enhance patient positioning for specialized examinations and procedures. The smooth, motorized backrest transitions from flat to a negative incline effortlessly and allows patient positioning for shock management in acute emergency scenarios.

  • Hospital-Grade Mobility (125mm Tente Castors): Equipped with world-class, lockable Tente castors, including a dedicated directional lock. Move the table safely through narrow corridors or lock it securely in place for stable patient transfers.

  • Enhanced Safety & Entrapment Reduction: The column-lift mechanism eliminates traditional scissor-action pinch points, creating a much safer environment for both clinicians and patients while lowering entrapment hazards.

  • Medical-Grade Fabric & Hygiene: Upholstered in premium, easy-to-clean medical vinyl that resists fluids and harsh clinical disinfectants, helping you maintain strict infection control protocols.

Ergonomic Controls & Configurations

The ABCO Clinical Examination Couch comes standard with an intuitive hand controller for precise height and backrest adjustments. For hands-free operation during sterile procedures, an optional foot controller is also available.

Why Choose the ABCO Clinical Table?

Built to withstand the demands of busy medical practices, the ABCO Clinical Examination Table is a long-term investment in patient comfort and occupational health and safety (OHS). By reducing manual handling risks and optimising clinical positioning, it allows healthcare professionals to focus entirely on delivering top-tier care.

SKU: EX20.07121.CE000H.00C0P0.26

Number of Upholstery Sections: 2

Overall Length: 2000mm

Upholstery Width: 710mm

Height Adjustment Type: Twin electric column for extra strength and safety with no longitudinal shift as height adjusts

Electric Control: Hand control

Height Adjustment Range: 500-900mm

Lifting Capacity: 300kg/150kg back rest

SKU: EX20.07121.CE000H.00C0P0.26

Dimensions and Adjustment
   Height Adjustment Control - Hand Control
   Height Adjustment Lift Operation - Twin electric column for extra strength and safety with no longitudinal shift as height adjusts
   Maximum Lifting Capacity - 300kg/150kg backrest
   Height Adjustment Range - 500 - 900mm
   Overall Length - 2000mm
   Overall Upholstery Width - 710mm

Frame
   Material - 3 Stage Powdercoated Steel
   Wheel System - 125mm Thermoplastic heavy duty, lockable castors

Upholstery
   Fabric - Medical grade fabric with Ezyclean. Resistant to Isopropyl Alcohol and bleach based cleaners
   Foam - 50mm medium density foam
   Colours - 15 Colours available

Electrical Requirements
   Approvals - Medically approved according to EN60601-1/ AS3200
   Supply - Domestic 10Amp or equivalent

General
   Shipping Dimensions - 202 x 72 x 65mm / 90kg Shrink-wrapped on a wooden pallet with bubble wrap
   Weight - 80kg
   Total Main Body Sections - 2
   ARTG - 123573
   Warranty - 5 years, parts only

ABCO Health Care has a policy of continuous improvement. Specifications are subject to change without notice.

Schematic Drawing:

ABCO Examination Table - Clinical - Schematic Drawing

Where can I buy ABCO Health care products?
   We ship direct to all parts of Australia from our factory in Melbourne.
   Please place your order on-line here.

Can I trial an ABCO Health Care product before purchase?
   We do not offer a trial service.
   However, we are confident in our products and have a generous Returns policy.

Getting Ready for Use
   Your Table will usually be delivered shrink-wrapped on a disposable wooden pallet.
   Unpack your Table after checking for any transit damage.
   Familiarise yourself with your Table by reading the enclosed User Instructions.
   Position your Table where you will be using it and plug the power cable into a standard household 10amp electrical socket.
   Your Table is now ready for use.

Specifications
   ABCO Health Care has a policy of continuous improvement.
   Specifications and Prices are subject to change without notice.

Returns and Claims
   You can return your purchase for refund within 30 days of delivery.
   Any returns only after authorisation by ABCO.
   All returns at your expense with packaging as new and subject to a 15% restocking fee.
