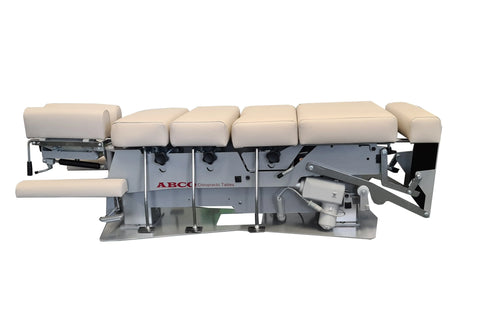

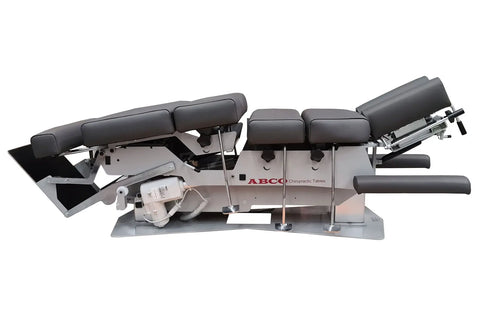

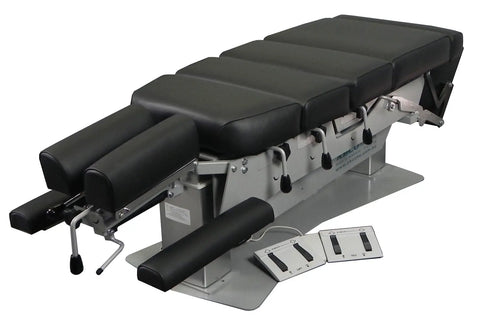

The ABCO Hylo Chiropractic Adjusting Table with Drops is a versatile and reliable addition to any chiropractic practice. Designed and manufactured in Australia, it comes with a 5-year warranty, ensuring long-term peace of mind. This table combines both HyLo tilt and elevation functions, allowing for easy adjustments to suit your needs. With user-customizable presets, you can effortlessly position the table vertically for patient access and horizontally to your preferred working height with just a single control button.
The twin column structure provides a stable working surface, eliminating lengthwise movement during height adjustments and reducing the risk of stray fingers or limbs getting caught. It also enhances treatment by moving quickly and quietly as needed. Capable of handling patients up to 200kg, the table tilts from standing to prone in just 11 seconds, and the elevation adjustment can support more than 250kg.
You'll appreciate the crisp, heavy-duty, fully adjustable drop pieces, which come with foot press body cocking as standard, with hand cocking available at no extra charge. For those who prefer a fixed height, a stationary version of the table is also available. This table is designed to provide flexibility and efficiency, making it a valuable asset for your practice.
SKU: CIMD.05642.CDFFFF.50NP0
Number of Upholstery Sections: 4
Overall Length: 1930mm including leg extension
Upholstery Width: 560mm
Height Adjustment Type: Twin electric column for extra strength and safety with no longitudinal shift as height adjusts
Electric Control: Foot control
Height Adjustment Range: 500 - 900mm
Lifting Capacity: 300kg
Head Rest Length: 340mm long Rolls
Cervical Section Length: 320mm long with drop. Adjusts from 15º to -25º
Lumbar Section Length: 210mm long with drop
Dorsal Section Length: 240mm long with drop
Pelvic Section Length: 240mm with drop + 560mm long. Adjusts to +10°
Leg Extension Length: 100mm long; extends 100mm
Overall Length: 1930mm including leg extension
Overall Width: 560mm
Maximum Upholstery Width: 560mm
Schematic Drawing:

Materials: Heavy steel plate and tube
Colour: Light grey
Wheel System: Base plate for maximum stability and ease of cleaning
Fabric: Leather - New Zealand Pigmented heavy commercial grade cattle hide.
Foam: 80mm very high-density foam with 12mm soft foam over
Colours: Charcoal. Other colours on request
Tilt - Twin Electric - 0° / +70°
Cervical Section - Gas Strut - ±20°
Pelvic Section - Gas Strut - -0° / + 12°
Leg Extension - Manual - extends 100mm
Electric Control: Foot control
Lifting Function : Twin electric column for extra strength and safety with no longitudinal shift as height adjusts
Lifting Capacity: 300kg
Tilting Function: Tilts to 70° in approx. 15 seconds
Tilting Capacity: 250kg
Drop Height: 16mm
Drop Force: 0 - 100% adjustable from either side of table
Drop Mechanism: Linear bearing / ball bearing
Cocking Mechanism: Roller bearing from either side of table. Foot press operated
Minimum Upholstery Height: 500mm
Maximum Upholstery Height: 900mm
Supply: 230 VAC /-10%, 50Hz max 1.5amp.
Operation: 24 VDC max 70VA
Medically approved according to EN60601-1/ AS3200
ARTG No: 123573
Shipping Dimensions: 182 x 62 x 65cm / 125kg Shrink-wrapped on a wooden pallet with bubble wrap
Weight: 110kg
Warranty: 5 years, parts only
Where can I buy ABCO Health care products?
We ship direct to all parts of Australia from our factory in Melbourne.
Please place your order on-line here.
Can I trial an ABCO Health Care product before purchase?
We do not offer a trial service.
However, we are confident in our products and have a generous Returns policy.
Getting Ready for Use
Your Table will usually be delivered shrink-wrapped on a disposable wooden pallet.
Unpack your Table after checking for any transit damage.
Familiarise yourself with your Table by reading the enclosed User Instructions.
Position your Table where you will be using it and plug the power cable into a standard household 10amp electrical socket.
Your Table is now ready for use.
Specifications
ABCO Health Care has a policy of continuous improvement.
Specifications and Prices are subject to change without notice.
I have a particular requirement that I cannot see on you site
As the manufacturer we are able to offer a variety of custom options including non-standard lengths and widths for an extra cost.
Please use our On-line Chat or our Contact Form describing your requirements.
Returns and Claims
You can return your purchase for refund within 30 days of delivery.
Any returns only after authorisation by ABCO.
All returns at your expense with packaging as new and subject to a 15% restocking fee.
